3504-50
3504-50
Hioki

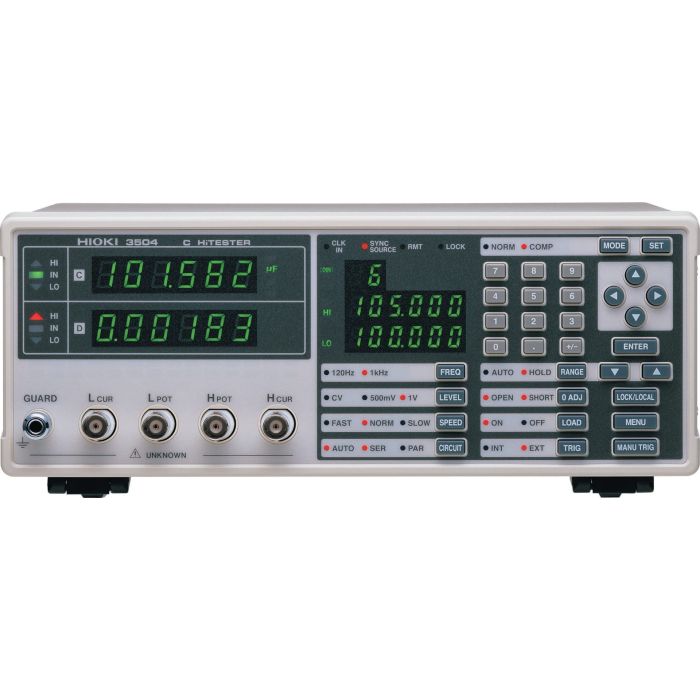

Capacitance HiTester, Built-in GP-IB, RS-232C, BIN Function
This product is available in 5-7 weeks
Dual-band 120Hz/1kHz Capacitance Meter for High Speed Inspection of Multi-Layer Ceramic Capacitors (MLCC) on Taping Machines
Hioki LCR Meters and Impedance Analysers range from 1mHz to 3GHz devices to suit a wide range of applications in the testing of electronic components. The 3504 series are dual-band capacitance meters suited for large-capacitance MLCC inspections using a constant voltage.
Key Features
- High speed measurement of 2ms
- Supports C measurements with voltage dependency characteristics through the use of constant voltage testing (CV)
- BIN function on the 3504-60/-50 is ideal for sorting machines
- In all models, contact error is constantly monitored during measurement, contributing to increased yield
We work closely with our technology partners to offer customers the best
lead time and prices we can achieve.
Contact our team for the latest availability and pricing information on
0330 313 3220, or use the request a quote button below and a member
of our team will be in touch.
| Attribute | Value |
|---|---|
| Power Supply | Selectable from 100, 120, 220 or 240 V AC ±10 %, 50/60 Hz, 110 VA max. |
| Included Accessories | Power cord ×1, Instruction manual ×1, Spare fuse ×1 |
| Display | LED (six digits, full scale count depends on measurement range) |
| Measurable Range | C: 0.9400 pF to 20.0000 mF, D: 0.00001 to 1.99999 |
| Functions |
4-terminal contact check function (3504-60 only) BIN (measurement values can be classified by rank) (3504-50, 3504-60), Trigger-synchronous output, Setting configurations can be stored, Comparator, Averaging, Low-C reject (bad contact detection), Chatter detection, EXT. I/O, RS-232C, GP-IB (3504-50, 3504-60) |
| Dimensions and Weight | 260 mm (10.24 in) W × 100 mm (3.94 in) H × 220 mm (8.66 in) D, 3.8 kg(134.0 oz) |
| Basic Accuracy | (Typ.) C: ±0.09 % rdg. ±10 dgt., D: ±0.0016 |
| Measurement Parameters | C (capacitance), D (loss coefficient tan δ) |
| Measurement Speed | 2 ms (Typ. value. Depends on measurement configuration settings) |
| Measurement Frequency | 120 Hz, 1 kHz |
| Measurement Signal Level |
100 mV (3504-60 only), 500 mV, 1 V rms CV 100 mV Measurement range: up to 170 μF range (Source frequency 1 kHz), up to 1.45 mF range (Source frequency 120 Hz) CV 500 mV Measurement range : up to 170 μF range (Source frequency 1 kHz), up to 1.45 mF range (Source frequency 120 Hz) CV 1V Measurement range : up to 70 μF range (Source frequency 1 kHz), up to 700 μF range (Source frequency 120 Hz) |
| Output Impedance | 5Ω (In open terminal voltage mode outside of the CV measurement range) |
