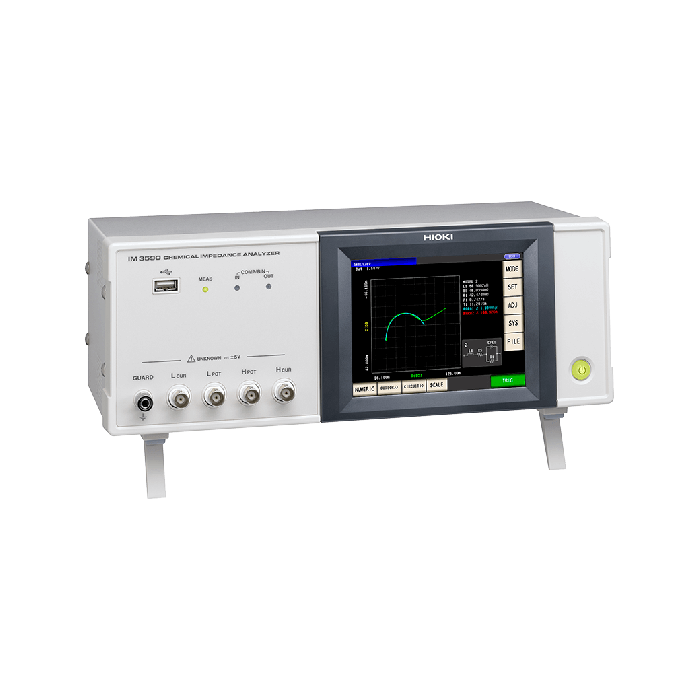

IM3590

IM3590

Hioki

Chemical Impedance Analyser

For R&D applications of Electrochemical Components and Materials, Batteries, and EDLCs

Hioki LCR Meters and Impedance Analysers range from 1 mHz to 3 GHz devices to suit a wide range of applications in the testing of electronic components. The IM3590 impedance analyser is an advanced component tester especially suited to electrochemical impedance measurements and includes a variety of graphing functions that are needed for battery and chemical material testing.

Key Features

  • Broad 1 mHz to 200 kHz signal source range supports measurements of ion behaviour and solution resistance
  • Continuous measuring and high-speed testing of LCR and sweep measurements with a single instrument
  • Measure internal impedance of batteries with no load
  • Perform high-speed sweep measurements in as little as 2 ms
  • Basic accuracy of ±0.05% is ideal for applications from component testing to R&D
  • Measure LCR impedance for Cole-Cole plots and equivalent-circuit analyses of electro-chemical components and materials
Contact us for lead time

Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.

More Information
Attribute Value
Power Supply 100 to 240 V AC, 50/60 Hz, 50 VA max.
Included Accessories Power cord ×1, Instruction manual ×1, CD-R (Communication instruction manual and sample software [Communications control, accuracy calculation, and screen capture functionality] ) ×1
Display 5.7-inch color TFT, display can be set to ON/OFF
Measurable Range 100 mΩ to 100 MΩ, 10 ranges (All parameters are determined according to Z)
Functions DC bias measurement, DC resistance temperature compensation (converted reference temperature is displayed), Temperature measurement, Battery measurement (Automatic DC biasing system), Comparator, BIN measurement (classification), Panel loading/saving, Memory function
Dimensions and Weight 330 mm (12.99 in) W × 119 mm (4.69 in) H × 168 mm (6.61 in) D, 3.1 kg (109.3 oz)
Basic Accuracy Z: ±0.05% rdg. θ: ±0.03°
Measurement Parameters

Z, Y, θ, Rs (ESR), Rp, Rdc (DC resistance), X, G, B, Cs, Cp, Ls, Lp,
D (tanδ), Q, T, σ (conductivity), ε (dielectric constant)

Measurement Speed 2 ms (1 kHz, FAST, display OFF, representative value)
Measurement Modes LCR mode, Continuous measurement mode (LCR mode / Analyzer mode), Analyzer mode (Sweeps with measurement frequency and measurement level, temperature characteristics, equivalent circuit analysis)
Display Range

Z, Y, Rs, Rp, Rdc, X, G, B, Ls, Lp, Cs, Cp, σ, ε :
±(0.00000 [unit] to 9.99999G [unit], Absolute value display for Z and Y only
θ : ±(0.000° to 180.000°), D : ±(0.00000 to 9.99999)
Q : ±(0.00 to 99999.9), Δ % : ±(0.0000% to 999.999%)
T : -10.0°C to 99.9°C
σ, ε :±(0.00000f [unit] to 999.999G [unit]

Measurement Frequency 1 mHz to 200 kHz (5 digits setting resolution, minimum resolution 1 mHz)
Measurement Signal Level

Normal mode:
V mode/CV mode: 5 mV to 5 Vrms, 1 mVrms steps
CC mode: 10 μA to 50 mArms, 10 μArms steps
Low impedance high accuracy mode:
V mode/CV mode: 5 mV to 2.5 Vrms, 1 mVrms steps
CC mode:10 μA to 100 mArms, 10 μArms steps

Output Impedance Normal mode: 100 Ω, Low impedance high accuracy mode: 25 Ω
More Information
Attribute Value
Data Sheet Click here to view

Related Products

  1. IM3533
  2. IM7583

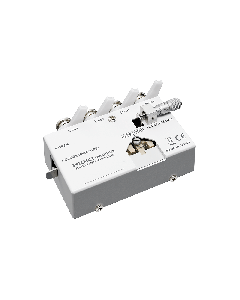

  3. IM9110
