Hioki IM7583 Impedance Analyser | APC Technology Group

IM7583

IM7583

Hioki

Impedance Analyser

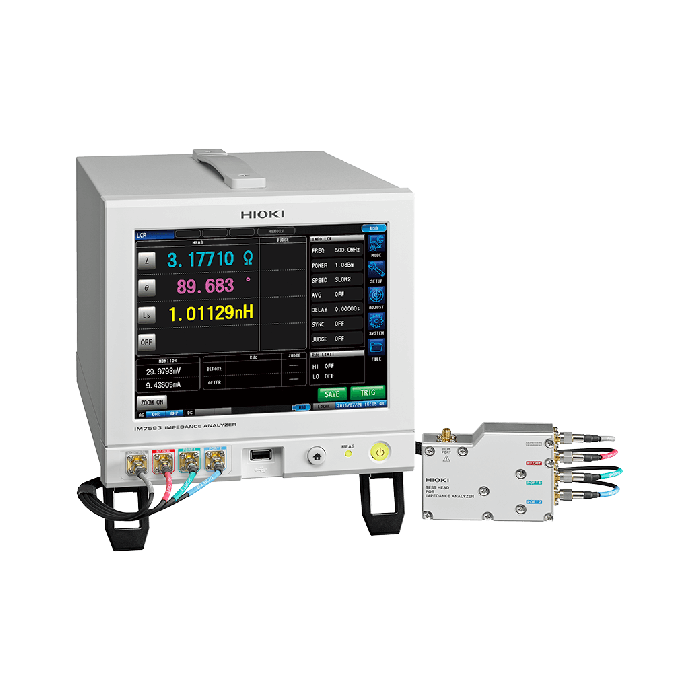

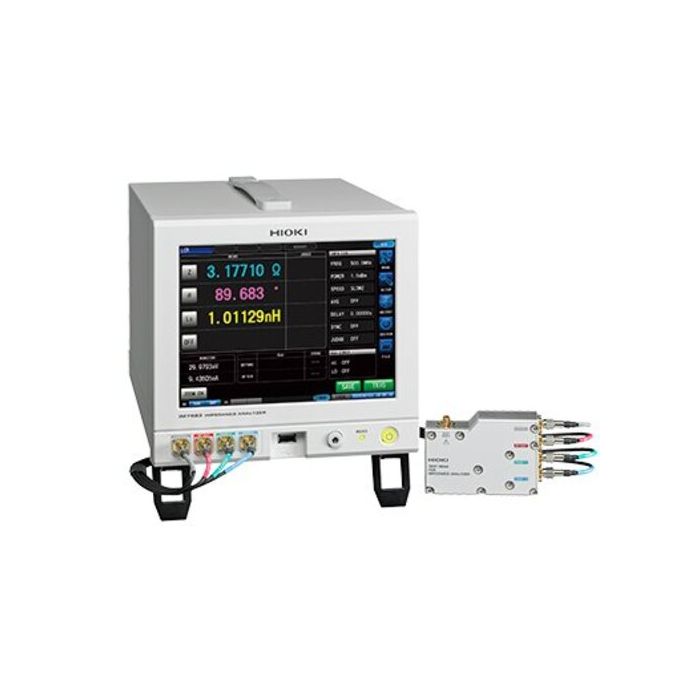

1 MHz to 600 MHz Measurement Frequency Impedance Analyzer with 0.5 ms Test Speed

Hioki LCR Meters and Impedance Analysers range from 1 mHz to 3 GHz devices to suit a wide range of applications in the testing of electronic components. The IM7583 offers a top measurement time of 0.5 ms over a 1 MHz to 600 MHz frequency range, making it ideal for high volume production of ferrite chip beads and chip inductors.

Key Features

  • 1 MHz to 600 MHz testing source frequency
  • Fastest test speed of 0.5 msec (Analog measurement time)
  • ±0.65% rdg. basic accuracy
  • RF I-V method
  • Half-rack size body and palm-sized test head
  • Comprehensive contact check (via DCR testing, Hi-Z reject or waveform judgment)
  • Make frequency sweeps, level sweeps and time interval measurements in Analyser Mode
Contact us for lead time

Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.

More Information
Attribute Value
Power Supply 100 to 240 V AC, 50/60 Hz, 70 VA max.
Included Accessories Test head ×1, Connection cable ×1, Instruction manual ×1, LCR application disc (Communications user manual) ×1, Power cord ×1
Display 8.4-inch color TFT with touch screen
Measurable Range 100 mΩ to 5 kΩ
Functions Contact check, Comparator, BIN measurement (classification), Panel loading/saving, Memory function, Equivalent circuit analysis, Correlation compensation
Dimensions and Weight

Main unit: 215 mm (8.46 in) W × 200 mm (7.87 in) H × 348 mm (13.70 in) D, 8.0 kg (282.2 oz)
Test head: 90 mm (3.54 in) W × 64 mm (2.52 in) H × 24 mm (0.94 in) D, 300 g (10.58 oz)

Basic Accuracy Z: ±0.65 % rdg. θ: ±0.38°
Measurement Parameters Z, Y, θ, Rs (ESR), Rp, X, G, B, Cs, Cp, Ls, Lp, D (tanδ), Q
Measurement Speed FAST: 0.5 ms (Analog measurement time, typical value)
Measurement Modes LCR mode, Analyser mode (Sweeps with measurement frequency and measurement level), Continuous measurement mode
Display Range

Z: 0.00 m to 9.99999 GΩ / Rs, Rp, X: ± (0.00 m to 9.99999 GΩ)
Ls, Lp: ± (0.00000 n to 9.99999 GH) / Q: ± (0.00 to 9999.99)
θ: ± (0.000° to 180.000°), Cs, Cp: ± (0.00000 p to 9.99999 GF)
D: ± (0.00000 to 9.99999), Y: (0.000 n to 9.99999 GS)
G, B: ± (0.000 n to 9.99999 GS), Δ%: ± (0.000 % to 999.999 %)

Measurement Frequency 1 MHz to 600 MHz (100 kHz setting resolution)
Measurement Signal Level

Power: -40.0 dBm to +1.0 dBm
Voltage: 4 mV to 502 mVrms
Current: 0.09 mA to 10.04 mArms

Output Impedance 50 Ω (at 10 MHz)
More Information
Attribute Value
Data Sheet Click here to view
