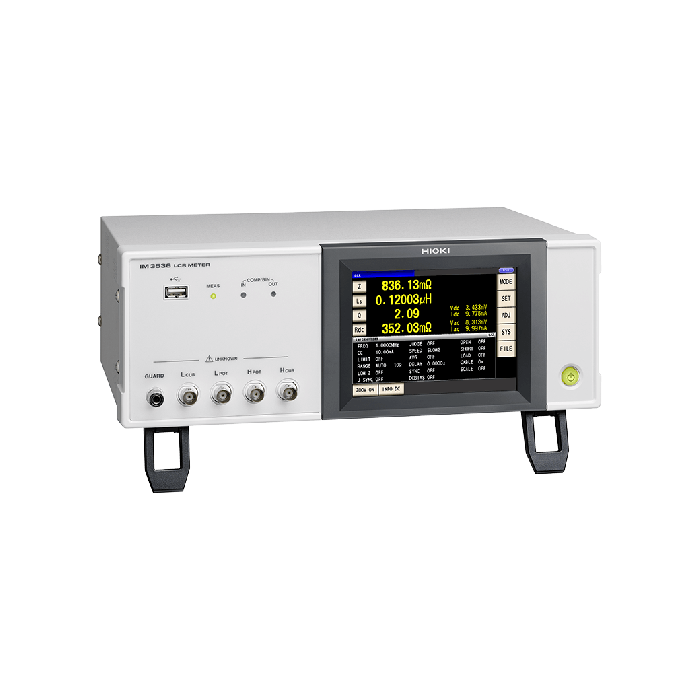

Hioki IM3536 LCR Meter | APC Technology Group

IM3536

IM3536

Hioki

LCR Meter

This product is available in 5-7 weeks

General-Purpose LCR Meters with Measurement Frequency from DC, 4 Hz to 8 MHz

Hioki LCR Meters and Impedance Analysers range from 1mHz to 3GHz devices to suit a wide range of applications in the testing of electronic components. The IM3536 raises the industry standard for general-purpose LCR meters by offering a wide DC and 4 Hz to 8 MHz (*1) testing frequency while delivering 0.05% accuracy, ideal for evaluating the characteristics of next generation electronic components, including power supply inductors thanks to the instrument’s maximum measurement frequency of 8 MHz (*1).


Key Features

  • DC, 4 Hz to 8 MHz (*1) measurement frequency
  • High-speed measurement of 1 ms (fastest time)
  • High-precision measurement of ±0.05% rdg. (representative value)
  • Guaranteed accuracy range from 1 mΩ, low-impedance measurement with unmatched repeatability
  • DC bias function: Measure under conditions simulating actual use or in accordance with industry standards
  • Exceptional specifications and cost-performance for a wide range of applications, from R&D to production lines

*1: Can be customised up to 10 MHz (special order available). Ask our team for details.

Contact our expert team

We work closely with our technology partners to offer customers the best
lead time and prices we can achieve.



Contact our team for the latest availability and pricing information on
0330 313 3220, or use the request a quote button below and a member
of our team will be in touch.

Price £4,970.28
More Information
Attribute Value
Power Supply 100 to 240 V AC, 50/60 Hz, 50 VA max.
Included Accessories Power cord ×1, Instruction manual ×1, LCR application disc (Communications user manual) ×1
Display 5.7-inch color TFT with touch panel
Measurable Range 100 mΩ to 100 MΩ, 10 ranges (All parameters are determined according to Z)
Functions Comparator, BIN measurement (10 categories for 2 measurement parameters), Trigger function, Open/short compensation, Contact check, Panel loading/saving, Memory function
Dimensions and Weight 330 mm (12.99 in) W × 119 mm (4.69 in) H × 230 mm (9.06 in) D, 4.2 kg (148.1 oz)
Basic Accuracy Z ±0.05% rdg. θ: ±0.03° (representative value, Measurable range: 1 mΩ to 200 MΩ)
Measurement Parameters Z, Y, θ, X, G, B, Q, Rdc (DC resistance), Rs (ESR), Rp, Ls, Lp, Cs, Cp, D (tanδ), σ, ε
Measurement Modes LCR (Measurement with single condition), Continuous testing (Continuous measurement under saved conditions)
Display Range

Z: 0.00 m to 9.99999 GΩ, Y: 0.000 n to 9.99999 GS, θ: ± (0.000° to 180.000°), Q: ± (0.00 to 9999.99), Rdc: ± (0.00 m to 9.99999 GΩ), D: ± (0.00000 to 9.99999), Δ%: ± (0.000 % to 999.999 %), or other

Measurement Frequency 4 Hz to 8 MHz (5 digits setting resolution, minimum resolution 10 mHz)
Measurement Signal Level

[Normal mode: V mode/CV mode]
4 Hz to 1.0000 MHz: 10 mV to 5 Vrms (maximum 50 mArms)
1.0001 MHz to 8 MHz: 10 mV to 1 Vrms (maximum 10mArms)

[Low impedance high accuracy mode: V mode/CV mode]
4 Hz to 1.0000 MHz: 10 mV to 1 Vrms (maximum 100 mArms)

[Normal mode: CC mode]
4 Hz to 1.0000 MHz: 10 μA to 50 mArms (maximum 5 Vrms)
1.0001 MHz to 8 MHz: 10 μA to 10 mArms (maximum 1 Vrms)

[Low impedance high accuracy mode: CC mode]
4 Hz to 1.0000 MHz: 10 μA to 100 mArms (maximum 1 Vrms)

[DC resistance measurement]
Measurement signal level: Fixed at 1 V

Output Impedance Normal mode: 100 Ω, Low impedance high accuracy mode: 10 Ω
DC Bias Measurement

Generating range: DC voltage 0 V to 2.50 V (10 mV resolution)
In low Z high accuracy mode: 0 V to 1 V (10 mV resolution)

More Information
Attribute Value
Data Sheet Click here to view
