Hioki 3504 Capacitance HiTester | APC Technology Group

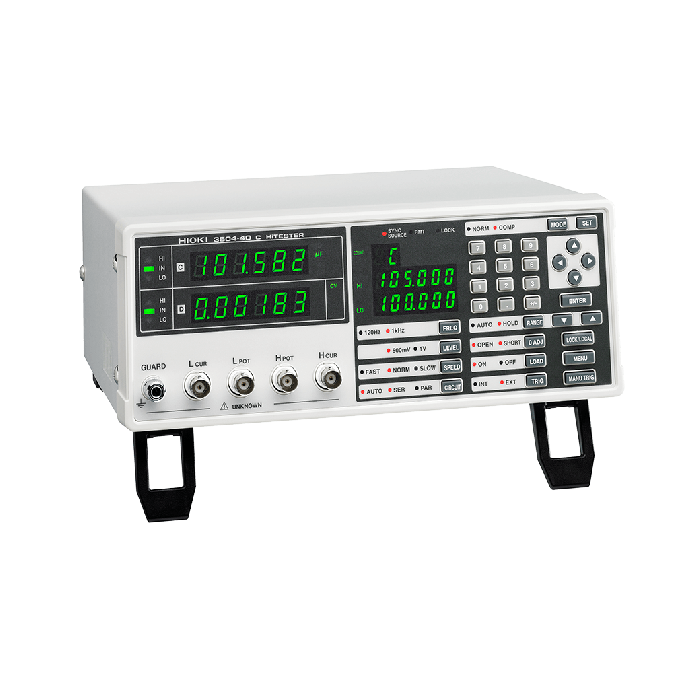

3504

3504

Hioki

Capacitance HiTester

Dual-band 120Hz/1kHz Capacitance Meter for High Speed Inspection of Multi-Layer Ceramic Capacitors (MLCC) on Taping Machines

Hioki LCR Meters and Impedance Analysers range from 1mHz to 3GHz devices to suit a wide range of applications in the testing of electronic components. The 3504 series are dual-band capacitance meters suited for large-capacitance MLCC inspections using a constant voltage.

Key Features

  • High speed measurement of 2ms
  • Supports C measurements with voltage dependency characteristics through the use of constant voltage testing (CV)
  • Model 3504-60 can detect contact failure on all 4 terminals for increased reliability
  • BIN function on the 3504-60/-50 is ideal for sorting machines
  • Model 3504-40 offers high speed and affordability, perfect for integrating into taping machines
  • In all models, contact error is constantly monitored during measurement, contributing to increased yield
Contact us for lead time

Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.

More Information
Attribute Value
Power Supply Selectable from 100, 120, 220 or 240 V AC ±10 %, 50/60 Hz, 110 VA max.
Included Accessories Power cord ×1, Instruction manual ×1, Spare fuse ×1
Display LED (six digits, full scale count depends on measurement range)
Measurable Range C: 0.9400 pF to 20.0000 mF, D: 0.00001 to 1.99999
Functions

4-terminal contact check function (3504-60 only)

BIN (measurement values can be classified by rank) (3504-50, 3504-60), Trigger-synchronous output, Setting configurations can be stored, Comparator, Averaging, Low-C reject (bad contact detection), Chatter detection, EXT. I/O, RS-232C, GP-IB (3504-50, 3504-60)

Dimensions and Weight 260 mm (10.24 in) W × 100 mm (3.94 in) H × 220 mm (8.66 in) D, 3.8 kg(134.0 oz)
Basic Accuracy (Typ.) C: ±0.09 % rdg. ±10 dgt., D: ±0.0016
Measurement Parameters C (capacitance), D (loss coefficient tan δ)
Measurement Speed 2 ms (Typ. value. Depends on measurement configuration settings)
Measurement Frequency 120 Hz, 1 kHz
Measurement Signal Level

100 mV (3504-60 only), 500 mV, 1 V rms

CV 100 mV Measurement range: up to 170 μF range (Source frequency 1 kHz), up to 1.45 mF range (Source frequency 120 Hz)

CV 500 mV Measurement range : up to 170 μF range (Source frequency 1 kHz), up to 1.45 mF range (Source frequency 120 Hz)

CV 1V Measurement range : up to 70 μF range (Source frequency 1 kHz), up to 700 μF range (Source frequency 120 Hz)

Output Impedance 5Ω (In open terminal voltage mode outside of the CV measurement range)
