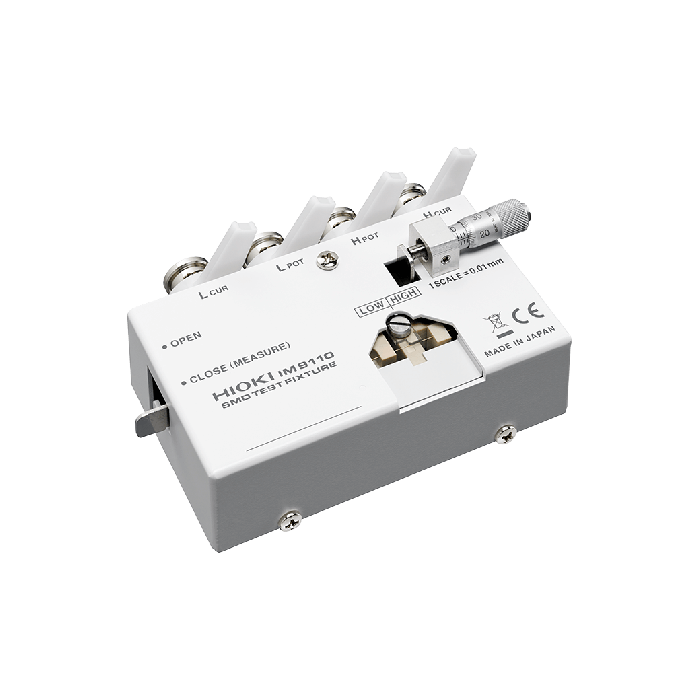

Hioki IM9110 SMD Test Fixture | APC Technology Group

IM9110

IM9110

Hioki

SMD Test Fixture

High-Precision Two-terminal Fixture for Measuring Ultra Small “008004” (inch) Components

Hioki LCR Meters and Impedance Analysers range from 1mHz to 3GHz devices to suit a wide range of applications in the testing of electronic components. The IM9110 is a general-purpose SMD test fixture for the IM35xx series of LCR meter/Impedance analyser that accommodates ultra-small components and delivers repeatable results.

Key Features

  • Easily place samples via built-in cover that keeps the sample from popping out
  • Advanced contact technology delivers highly reproducible measurement results
Contact us for lead time

Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.

More Information
Attribute Value
Included Accessories Instruction manual ×1, short compensation fixture ×3, cleaning brush ×1
Measurement Frequency DC to 1 MHz
Maximum Voltage

Voltage: ±42 V peak (AC + DC)
Current: 0.15 A rms (±0.15 A DC)

Supported Units

M3590, IM3570, IM3536, IM3533, IM3533-01, IM3523, 3506-10

Legacy products: 3511-50, 3532-50, 3522-50

Connection With Sample 2-terminal connection from opposite sides
Measurable Sample Sizes

0.25 ±20% × 0.125 ±10% × 0.125 ±10% mm (EIA size category: 008004 inch)

Please ask our team for details about other sizes.

More Information
Attribute Value
Data Sheet Click here to view
