IM9201

IM9201

Hioki

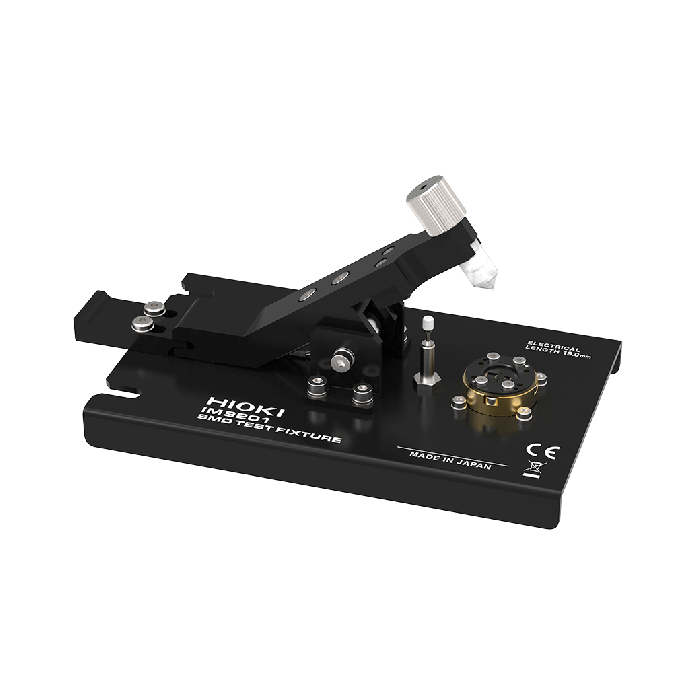

SMD Test Fixture

This product is available in 5-7 weeks

3 GHz High Frequency Test Fixture for 6 Different SMD Sizes

Hioki LCR Meters and Impedance Analysers range from 1 mHz to 3 GHz devices to suit a wide range of applications in the testing of electronic components. The IM9201 is a high frequency SMD test fixture for the IM7580 series impedance analysers that delivers ultimate flexibility by supporting 6 different SMD package sizes.

Key Features

  • SMD Test Fixture exclusively for the IM7580 series
  • 2 device guides let you measure 6 different SMD sizes
  • Definitive 3GHz high frequency analysis made easy
  • Supports SMD sizes 0201, 0402, 0603, 0805, 1206, and 1210 (inch)
Contact our expert team

We work closely with our technology partners to offer customers the best
lead time and prices we can achieve.



Contact our team for the latest availability and pricing information on
0330 313 3220, or use the request a quote button below and a member
of our team will be in touch.

Price £6,858.21
More Information
Attribute Value
Included Accessories Short plate (5 types), GND plate (2 types), Device guide (2 types), Hexagon socket head bolts ×8, Tip pin (2 types), Knob ×1, Brush for cleaning ×1, Hex driver ×1, Carrying case ×1, Instruction Manual ×1
Frequency Range DC to 3 GHz
Measurable DUT 0201, 0402, 0603, 0805, 1206, 1210 (inch)
Electrode Structure 2-terminal connection to bottom electrodes
Maximum Voltage ±42 Vpeak (AC+DC)
Supported Units IM7580, IM7580A, IM7581, IM7583, IM7585, IM7587
Additional Error

Impedance: ±Ze [%]
Phase: θe = ±0.58 × Ze [° ]
Ze = Ae + (Zse / Zx + Yoe × Zx) × 100
Zx: Impedance measurement value [Ω]
Ae: 4 × f² [%]
Zse: (100 + 500 × f) / 1000 [Ω]
Yoe: (10 + 100 × f) / 1000000 [S]
f [GHz]
