Pincher Probe L2001 - Measure 0603 (EIA) Chip Components

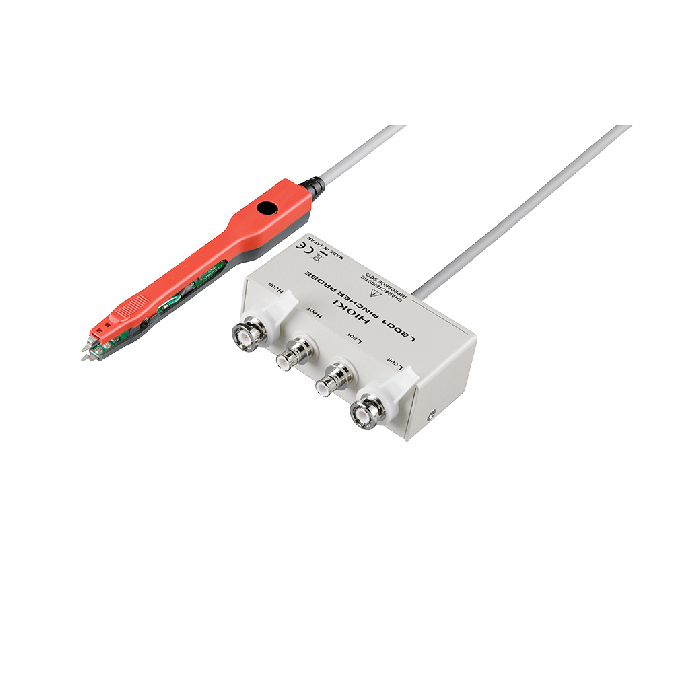

main product photo
The L2001 Pincher Probe can be connected directly to measurement terminals on Hioki LCR meters, impedance analyzers, and Capacitance HiTesters. Among the targets it can measure are chip components. Each of the arm tips features a two-terminal design.
Contact us for lead time

Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.

Request a quote
More Information
Attribute Value
Key Features
  • Tip electrodes featuring 2-terminal design (4-terminal pair design between electrode and measurement unit)
  • Replace the tip easily
  • Includes 1 set of IM9901 Contact Tips
Basic Specifications
Connection cable length 73 cm (2.40 ft)
Measurable sample sizes Contact Tips IM9901 (with standard tips): 1608 to 5750 (JIS)/ 0603 to 2220 (EIA)
Contact Tips IM9902 (with optional tips): 0603 to 5750 (JIS)/ 0201 to 2220 (EIA)
Characteristic impedance 50 Ω
Usable frequency range DC to 8 MHz
Accessories Instruction manual ×1, open correction jig ×1, CONTACT TIPS IM9901 (fixed standard with 4 screws)
Accessory Type Probe
More Information
Attribute Value
Data Sheet Click here to view
