IM9000
IM9000
Hioki
Equivalent Circuit Analysis Firmware
Simple Circuit Analysis & Detailed Acceptance/Rejection Decision-Making
Firmware Upgrade for the IM3570
Hioki LCR Meters and Impedance Analysers range from 1mHz to 3GHz devices to suit a wide range of applications in the testing of electronic components. The IM9000 is an optional firmware upgrade for Model IM3570 to facilitate Cole-Cole plots, simple circuit analysis and detailed acceptance/rejection decisions, adding value to the IM3570 to serve more advanced component analysis.
Key Features

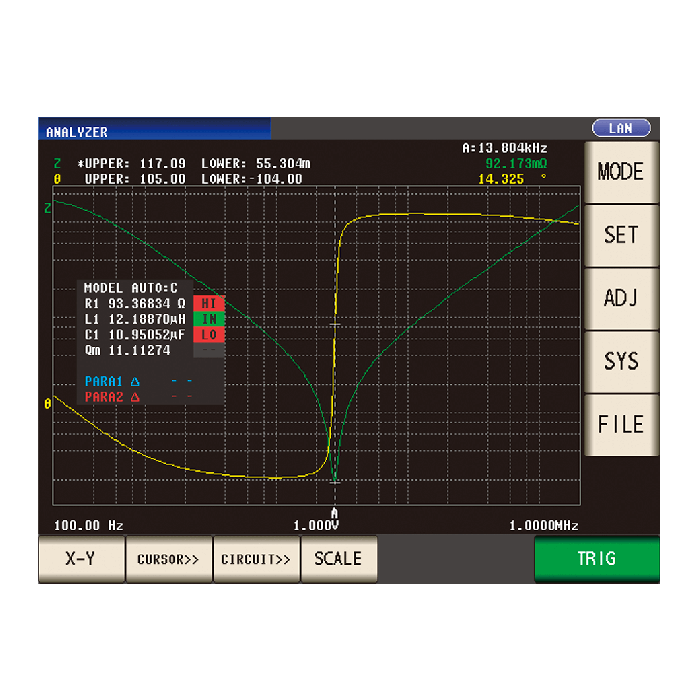

- Automatically select the equivalent circuit model from the five typical models to minimise the differences between the measured values and the ideal frequency characteristics derived from the analysis results
- Determine acceptance/rejection for the L, C, and R elements comprising a part and the resonance sharpness (mechanical quality coefficient)
- Make detailed decisions on the elements using the resonance of a piezoelectric element or inductor
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Other Functions |
Simulation: Enables displaying and comparing the ideal frequency characteristics graph derived from the analysis results or the values specified by the user |
| Three-Element Model |
Equivalent circuit model: Four models for Coil, Resistance, Capacitor |
| Four-Element Model |
Equivalent circuit model: One model for Piezoelectric element |
| X-Y Display | Cole-Cole plot, Admittance circle display |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
