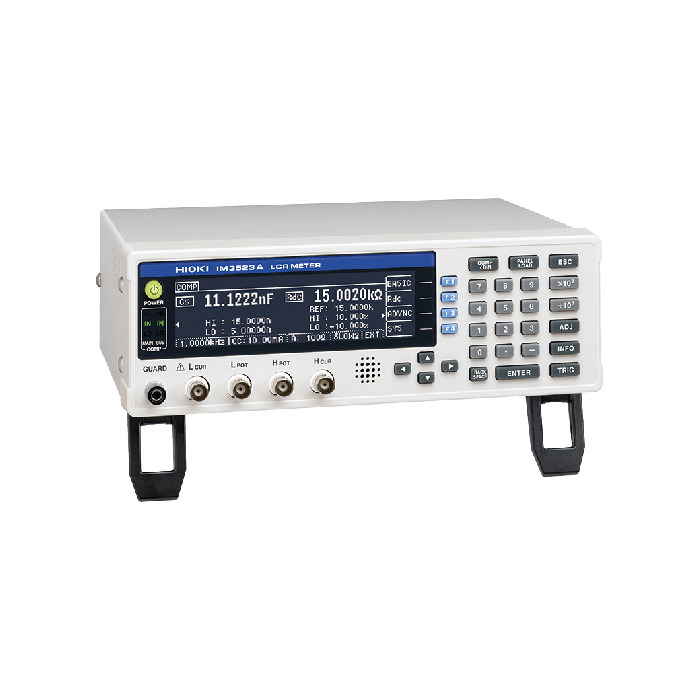

IM3523A
IM3523A
Hioki
LCR Meter
Ideal for Production Lines of Electronic Parts and Automated Testing
Hioki LCR Meters and Impedance Analysers range from 1 mHz to 3 GHz devices to suit a wide range of applications in the testing of electronic components. The IM3523A is designed for basic measurement on production lines so that it can be offered at a low price point, and delivers improved measurement reliability thanks to its contact check function.
Key Features
- ±0.05% accuracy with wide measurement range (DC, 40Hz to 200kHz, 5mV to 5V, 10uA to 50mA)
- Rapid 2 msec test time
- Built-in comparator and BIN functions
- Non-stop testing over mixed measurement conditions such as C-D(120 Hz) and ESR(100 kHz) at 10 times the speed of previous models (compared with Model 3532-50)
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Power Supply | 100 to 240 V AC, 50/60 Hz, 50 VA max |
| Included Accessories | Power cord × 1 , CD-R (Includes Instruction manual, PC commands and Sample software) × 1, Startup guide× 1, Operating precautions× 1 |
| Display | Monochrome LCD |
| Measurable Range | 100 mΩ to 100 MΩ, 10 ranges (All parameters defined in terms of Z.) |
| Functions | Comparator, BIN measurement (classify function), Panel loading/saving, Memory function |
| Dimensions and Weight | 260 mm (10.24 in) W × 88 mm (3.46 in) H × 203 mm (7.99 in) D, 2.1 kg (84.7 oz) |
| Basic Accuracy | Z : ±0.05% rdg. θ: ±0.03° |
| Measurement Parameters | Z, Y, θ, X, G, B, Q, Rdc (DC resistance), Rs (ESR), Rp, Ls, Lp, Cs, Cp, D (tanδ) |
| Measurement Speed | 2 ms (1 kHz, FAST, representative value) |
| Measurement Modes | LCR (Measurement with single condition), Continuous testing (Continuous measurement under saved conditions) |
| Display Range |
Z, Y, Rs, Rp, Rdc, X, G, B, Ls, Lp, Cs, Cp : |
| Measurement Frequency | 40 Hz to 200 kHz (5 digits setting resolution) |
| Measurement Signal Level |
V mode, CV mode: 5 mV to 5 Vrms, 1 mVrms steps |
| Output Impedance | 100 Ω |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
