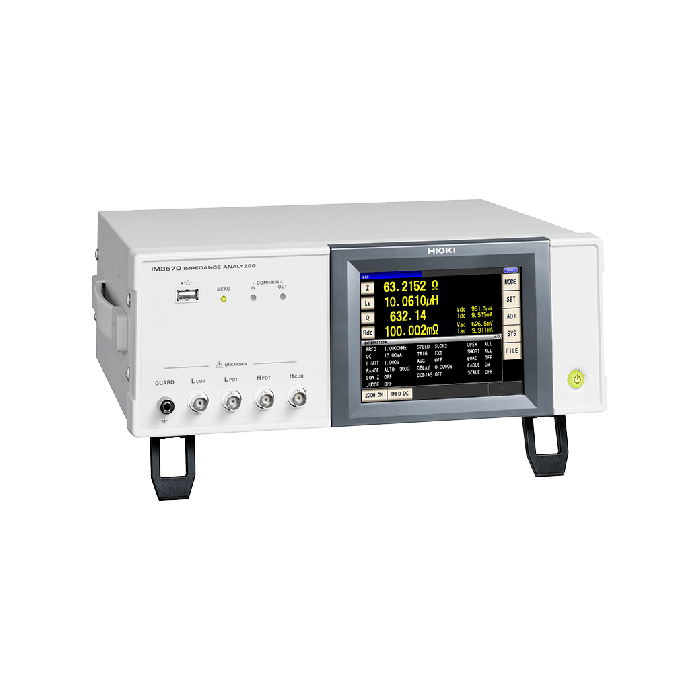

IM3570

Hioki

Impedance Analyser

Skip to the end of the images gallery

Skip to the beginning of the images gallery

This product is available in 5-7 weeks

Single Device Solution for High Speed Testing and Frequency Sweeping

Hioki LCR Meters and Impedance Analysers range from 1mHz to 3GHz devices to suit a wide range of applications in the testing of electronic components. The IM3570 is ideal for use in applications requiring low-ESR measurement on the order of several milliohms, for example testing of functional polymer capacitors, due to its superior low-impedance repeatability.

Key Features

Continuous LCR/DCR/sweep measurements and high-speed testing achieved with one instrument
High-speed testing, achieving maximum speeds of 1.5ms (1 kHz) and 0.5ms (100kHz) in LCR mode
High-accuracy measurements, basic accuracy of Z parameter: ±0.08%
Perfect impedance analyser for testing the resonance characteristics of piezoelectric elements, C-D and low ESR measurement of functional polymer capacitors, DCR and L-Q measurement of inductors (coils and transformers)

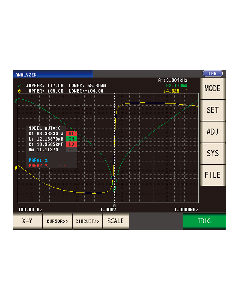

Perform frequency sweeps, level sweeps, and time interval measurements in analyser mode

Specifications

More Information
Attribute	Value
Power Supply	90 to 264 V AC, 50/60 Hz, 150 VA max.
Included Accessories	Power cord × 1, Instruction manual × 1, PC communication instruction manual (CD-R) × 1
Display	5.7-inch color TFT, display can be set to ON/OFF
Measurable Range	100 mΩ to 100 MΩ, 12 ranges (All parameters are determined according to Z)
Functions	DC bias measurement, Comparator, BIN measurement (classification), Panel loading/saving, Memory function
Dimensions and Weight	330 mm (12.99 in) W × 119 mm (4.69 in) H × 307 mm (12.09 in) D, 5.8 kg (204.6 oz)
Basic Accuracy	Z ±0.08% rdg. θ: ±0.05°
Measurement Parameters	Z, Y, θ, Rs (ESR), Rp, Rdc (DC resistance), X, G, B, Cs, Cp, Ls, Lp, D (tanδ), Q
Measurement Speed	0.5 ms (100 kHz, FAST, display OFF, representative value)
Measurement Modes	LCR mode, Analyser mode (Sweeps with measurement frequency and measurement level), Continuous measurement mode
Display Range	Z, Y, Rs, Rp, Rdc, X, G, B, Ls, Lp, Cs, Cp : ±(0.000000 [unit] to 9.999999G [unit], Absolute value display for Z and Y only θ : ±(0.000° to 180.000°), D : ±(0.000000 to 9.999999) Q : ±(0.00 to 99999.99), Δ % : ±(0.0000% to 999.9999%)
Measurement Frequency	4 Hz to 5 MHz (5 digits setting resolution, minimum resolution 10 mHz)
Measurement Signal Level	Normal mode: V mode/CV mode: 5 mV to 5 Vrms (up to 1 MHz) 10 mV to 1 Vrms (1.0001 MHz to 5 MHz), 1 mVrms steps CC mode: 10 μA to 50 mArms (up to 1 MHz) 10 μA to 10 mArms (1.0001 MHz to 5 MHz), 10 μArms steps Low impedance high accuracy mode: V mode/CV mode: 5 mV to 1 Vrms (up to 100 kHz), 1 mVrms steps CC mode: 10 μA to 100 mArms (100 mΩ and 1Ω ranges of up to 100 kHz), 10 μArms steps
Output Impedance	Normal mode: 100 Ω, Low impedance high accuracy mode: 10 Ω
