IM7585-01
IM7585-01
Hioki

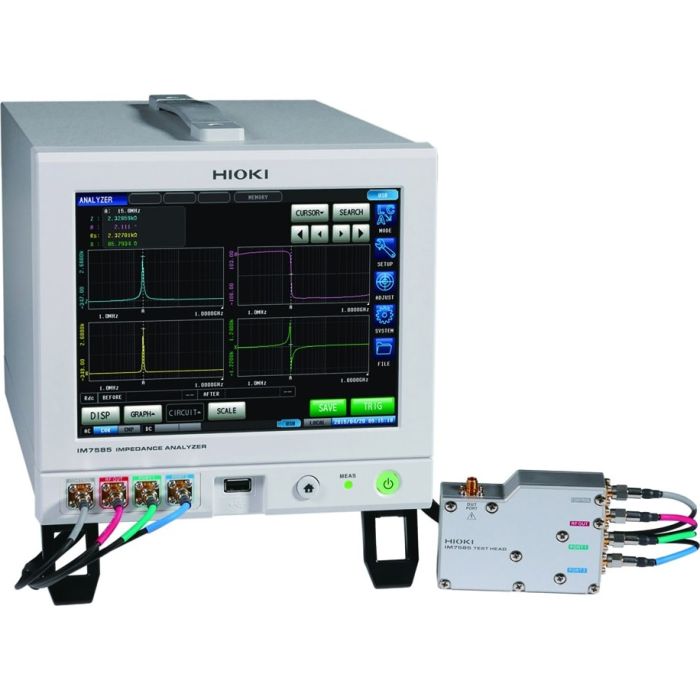

Impedance Analyser with 1m Connection Cable
1MHz to 1.3GHz Measurement Frequency Impedance Analyser with 0.5ms Test Speed and 0.07% Variability
Hioki LCR Meters and Impedance Analysers range from 1 mHz to 3 GHz devices to suit a wide range of applications in the testing of electronic components. The IM7585 Impedance Analyser offers a top measurement time of 0.5 ms over a 1 MHz to 1.3 GHz frequency range and superior stability, making it ideal for R&D as well as high volume production of ferrite chip beads and chip inductors.
Key Features
- 1 MHz to 1.3 GHz testing source frequency
- Fastest test speed of 0.5 msec (Analog measurement time)
- 0.07% measured value variability (when measuring at 1GHz)
- ±0.65% rdg. basic accuracy
- RF I-V method
- Half-rack size body and palm-sized test head
- Comprehensive contact check (via DCR testing, Hi-Z reject or waveform judgment)
- Make frequency sweeps, level sweeps and time interval measurements in Analyser Mode
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Power Supply | 100 to 240 V AC, 50/60 Hz, 70 VA max. |
| Included Accessories | Test head ×1, Connection cable ×1, Instruction manual ×1, LCR application disc (Communications user manual) ×1, Power cord ×1 |
| Display | 8.4-inch color TFT with touch screen |
| Measurable Range | 100 mΩ to 5 kΩ |
| Functions | Contact check, Comparator, BIN measurement (classification), Panel loading/saving, Memory function, Equivalent circuit analysis, Correlation compensation |
| Dimensions and Weight |
Main unit: 215 mm (8.46 in) W × 200 mm (7.87 in) H × 348 mm (13.70 in) D, 8.0 kg (282.2 oz) |
| Basic Accuracy | Z: ±0.65 % rdg. θ: ±0.38° |
| Measurement Parameters | Z, Y, θ, Rs (ESR), Rp, X, G, B, Cs, Cp, Ls, Lp, D (tanδ), Q |
| Measurement Speed | FAST: 0.5 ms (Analog measurement time, typical value) |
| Measurement Modes | LCR mode, Analyser mode (sweeps with measurement frequency and measurement level), Continuous measurement mode |
| Display Range |
Z: 0.00 m to 9.99999 GΩ / Rs, Rp, X: ± (0.00 m to 9.99999 GΩ) |
| Measurement Frequency | 1 MHz to 1.3 GHz (100 kHz setting resolution) |
| Measurement Signal Level |
Power: -40.0 dBm to +1.0 dBm |
| Output Impedance | 50 Ω (at 10 MHz) |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
