Hioki IM9100 SMD Test Fixture | APC Technology Group

IM9100

IM9100

Hioki

SMD Test Fixture

This product is available in 5-7 weeks

High-Precision Four-Wire Testing of Ultra-Small Components from 01005 (inch)

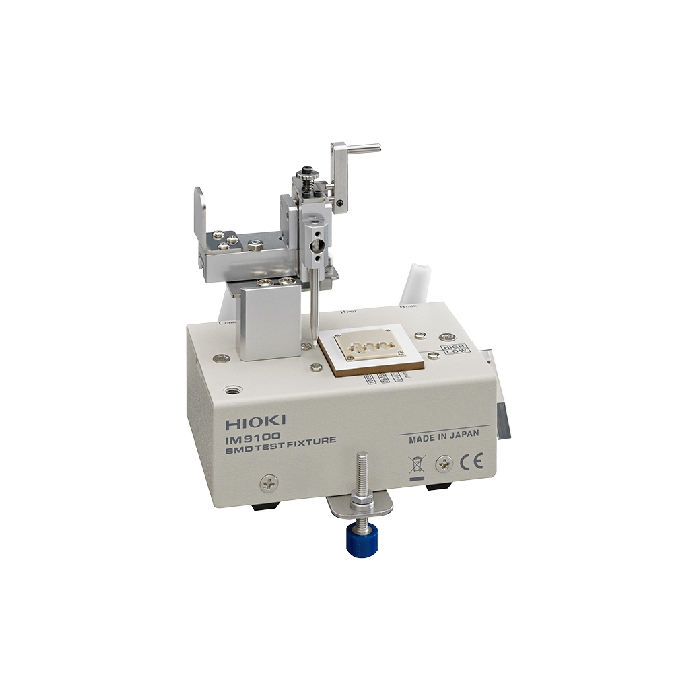

Hioki LCR Meters and Impedance Analysers range from 1 mHz to 3 GHz devices to suit a wide range of applications in the testing of electronic components. The IM9100 is a 4-wire direct connection test fixture that supports testing of components in various sizes that are designed with electrodes on the bottom.

Key Features

  • Direct connection type
  • For measuring SMDs with electrodes on the bottom
  • DC to 8 MHz measurement frequency
  • Measurable sample sizes: Metric (Inch): 0402 (01005), 0603 (0201), 1005 (0402)
Contact our expert team

We work closely with our technology partners to offer customers the best
lead time and prices we can achieve.



Contact our team for the latest availability and pricing information on
0330 313 3220, or use the request a quote button below and a member
of our team will be in touch.

Price £5,185.25
More Information
Attribute Value
Included Accessories Instruction manual ×1, Short supplement jig (for all sizes) ×1, Open supplement jig (for all sizes) ×2
Frequency Range DC to 8 MHz
Maximum Voltage

Voltage: ±42 V peak (AC + DC)
Current: 0.15 A rms (±0.15 A DC)

Supported Units

IM3590, IM3570, IM3536, IM3533, IM3523, 3506-10

Legacy products: 3511-50, 3532-50, 3522-50

Connection With Sample Four terminal type
Measurable Sample Sizes Metric (Inch): 0402 (01005), 0603 (0201), 1005 (0402)
Measurement Terminals Four terminal direct connection type, BNC terminals
More Information
Attribute Value
Data Sheet Click here to view
