3D2D6G48UB3687

3D2D6G48UB3687

3D Plus

1.8V, 6 Gbit DDR2 SDRAM organised as 128M x48, based on 128M x8

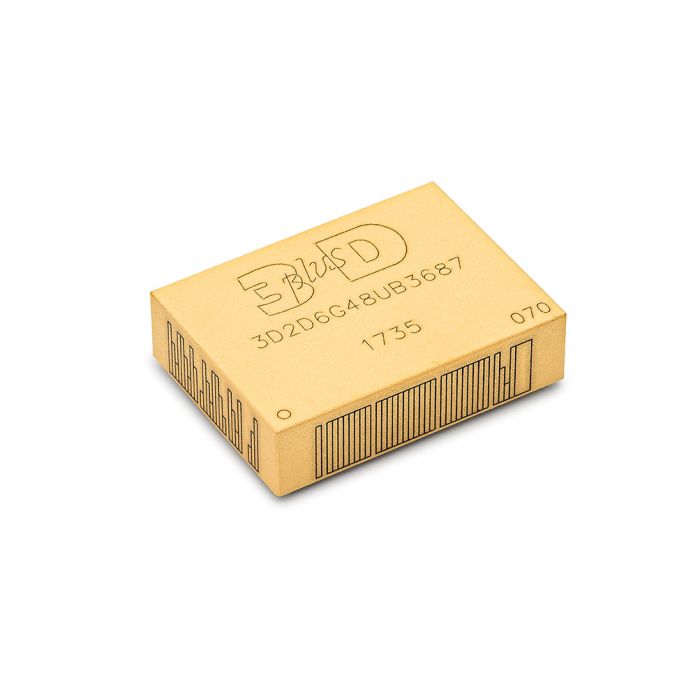

main product photo

The 3D2D6G48UB3687 is a high-speed highly integrated DDR2 Synchronous Dynamic Ram Memory. It is particularly well suited for use in high reliability, high performance and high density system applications, such as servers or workstations. The 3D2D6G48UB3687 is packaged in a 143 balls BGA available with lead-free or leaded balls.

Contact us for lead time

Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.

Request a quote
More Information
Attribute Value
Features
  • Jedec standard 1.8V I/0 (SSTL_18 compatible)
  • Max Data rate = 333 Mbps
  • Differential data strobe per byte
  • 4n-bit prefetch architecture
  • DLL to align DQ and DQS transitions with CK
  • 6 internal banks per die for concurrent operation
  • Programmable CAS Latency
  • Posted CAS Additive Latency
  • Write Latency = Read Latency - 1tck
  • Programmable Burst Lengths: 4 or 8
  • On-Die Termination
  • 3D Plus DDR2 Radiation Harden Solution:
    • TID > 100 Krad (Si)
    • SEL immune > 68 MeV.cm²/mg
    • SEU immune by design (3.8E-9 upset/day/module with 3DIPMC700)
    • SEFI immune by design (with 3DIPMC700)
  • Available with screening option for high reliability application (Space, etc…)
Product Type DDR2 SDRAM
Memory 6Gb
Power Supply +1.8 ± 0.1V
Pin Assignment BGA 143 - 12x18 - Pitch 1.27 mm
Temperature Range
  • 0°C to +70°C
  • -40°C to +85°C
  • Specific temperature range can be requested
More Information
Attribute Value
Data Sheet Click here to view
