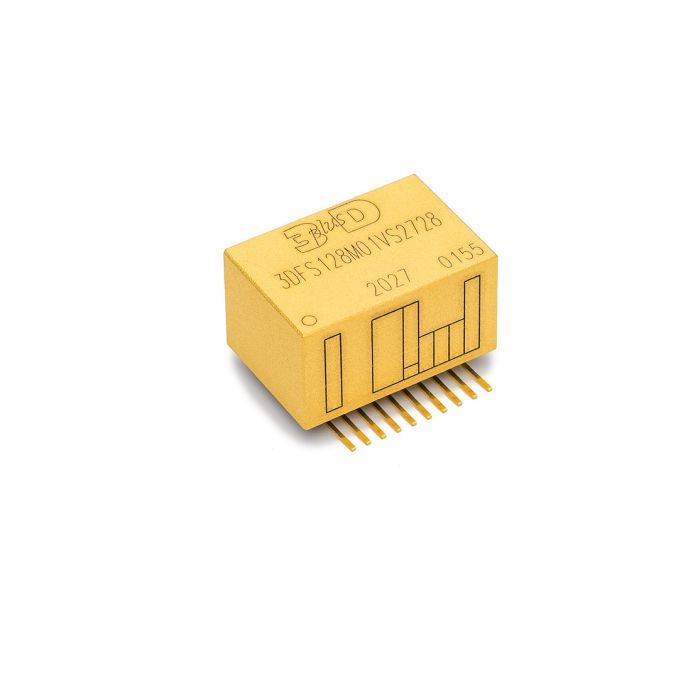

3DFS128M01VS2728
3DFS128M01VS2728
3D Plus
3.3 V, 128 Mbit SPI TMR NOR Flash
The 3DFS128M01VS2728 is an embedded TMR 128 Mbit SPI NOR Flash. This latch-up immune memory is radiation hardened by design with a protection against potential SEE ensured by TMR mitigation electronics, and an enhanced TID performance controlled by an embedded power on/off switch. This device is designed and manufactured by 3D PLUS using its space qualified stacking technology process and manufacturing line based in France.
The memory module is available in a small dimension (SOP 20) package, optimised forminimal PCB real estate for Space applications. Its memory density, its guaranteed data retention, its SEL immunity, SEE mitigation operations and space-qualified technology make it the ideal memory device for SRAM-based FPGA configuration. The device has also the capability to be easily switched-off after the boot code has been loaded in order to save the application power.
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Features |
Space Qualifications
Radiation Tolerance
|
| Product Type | NOR FLASH SPI |
| Memory | 128Mb |
| Power Supply | Single 3.3 V power supply |
| Pin Assignment | SOP 20 - Pitch 1.27 mm |
| Temperature Range |
|
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
