3DEE2M08CS2097
3DEE2M08CS2097
3D Plus

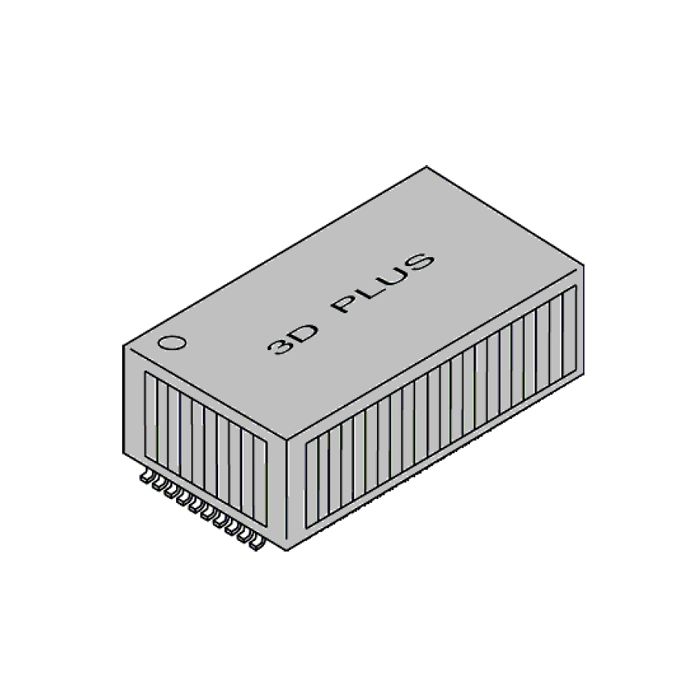

5V, 2 Mbit Memory Module: EEPROM organised as 256K x8, based on 128K x8
The 3DEE2M08CS2097 is a 262,144 words of 8-bits, EEPROM (Electrically Erasable and Programmable ROM) organised as two banks of 1 Mbit. This module operates at high speed, low power consumption and high reliability by employing advanced MNOS memory technology and CMOS process and circuitry technolgy. Each bank has 8-bit interface and is selected with specific #CE. All other signals are common to the two EEPROM 1Mbit.
The device is manufactured using 3D Plus MCM-V patented technology. The 3DEE2M08CS2097 is packaged in a SOP 40 and is available for Commercial, Industrial or Military temperature range. It is also available with screening options up to space grade level.
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Product Type | EEPROM |
| Data_Sheet |
To request a datasheet, contact a member of our high-reliability team [email protected] |
| Memory | |
| Power Supply | |
| Pin Assignment | SOP 40 - Pitch 0.50 mm |
| Temperature Range |
|
| Features |
|
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
