3D Plus

5V, 8 Mbit Memory Module: EEPROM organised as 1M x8, based on 128K x8

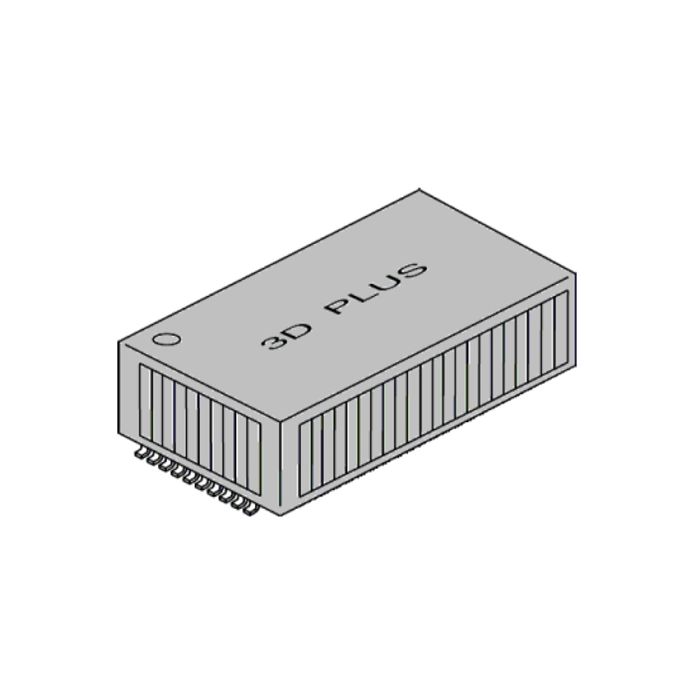

main product photo

The 3DEE8M08CS8020 is a 1,048,576 words of 8-bits, EEPROM (Electrically Erasable and Programmable ROM).It is organised as eight banks of 1Mbit (128Kx32). Each bank has 8bit interface and is selected with specific #CE. All other signals are common to the eight 1Mbit EEPROM. The device is manufactured using 3D PLUS well-known MCM-V patented technology.

It is particularly well suited for use in high reliability, high performance and high density system applications. The 3DEE8M08CS8020 module is packaged in a 40 pins SOP.

Contact us for lead time

Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.

Request a quote
More Information
Attribute Value
Features
  • Access time: 150 ns (Max)
  • On chip latches: address, data, #CE, #OE, #WE
  • Automatic byte write: 10 ms (Max)
  • Automatic page write (128 bytes): 10 ms (Max)
  • Power dissipation:
    • Active: 20 mW/Hz (Typ)
    • Standby: 1 mW (Max)
  • Command/Address/Data Multiplexed I/O Port
  • Data polling and RDY/#BUSY
  • Reliable CMOS with MNOS cell technology
  • 10⁴ erase/write cycles (in page mode for fast processing access)
  • Data Retention: 10 Years
  • Software data protection
  • Write protection by #RES pin
  • Available with screening option for high reliabilityapplications
Product Type EEPROM
Memory 8Mb
Power Supply 5V ± 10%
Pin Assignment SOP 40 - Pitch 0.50 mm
Temperature Range
  • 0°C to +70°C
  • -40°C to +85°C
  • -55°C to +125°C
More Information
Attribute Value
Data Sheet Click here to view
