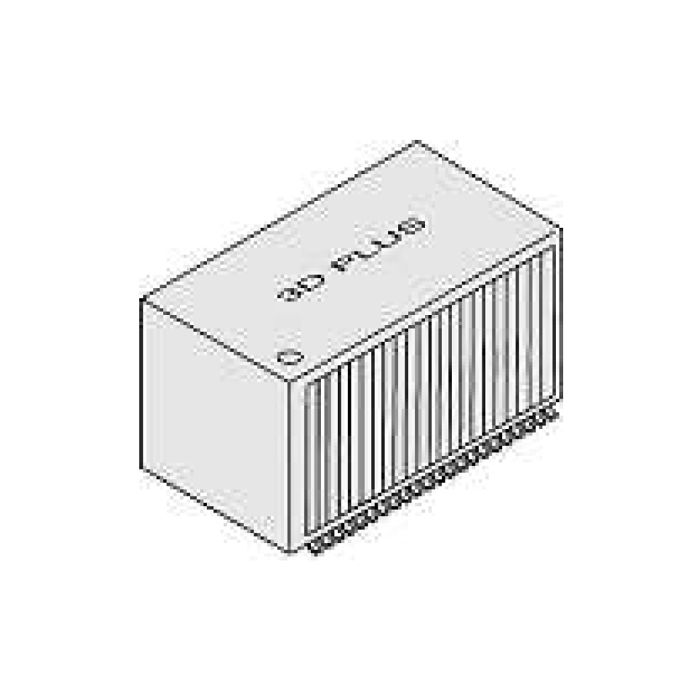

3DEE8M32CS8163
3DEE8M32CS8163
3D Plus
5V, 8 Mbit Memory Module: EEPROM organised as 256K x32, based on 128K x8
The 3DEE8M32CS8163 is a 262,144 words of 32-bits. Electrically Erasable and Programmable CMOSROM. It is organised as two banks of 4 Mbit (128K x32). Each bank has 32-bit interface and is selected with specific #CE. All other signals are common to the eight 1 Mbit EEPROM .
Each bank operates at high speed, low power consumption and high reliability by employing advanced MNOS memory technology and CMOS process and circuitry technology. The device is manufactured using 3D PLUS well known MCM-V patented technology. It is particularly well suited for use in high reliability, high performance and high density system applications. The 3DEE8M32CS8163 is packaged in a 64 pins SOP.
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Features |
|
| Product Type | EEPROM |
| Memory | 8Mb |
| Power Supply | 5V ± 10% |
| Pin Assignment | SOP 64 - Pitch 0.50 mm |
| Temperature Range |
|
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
