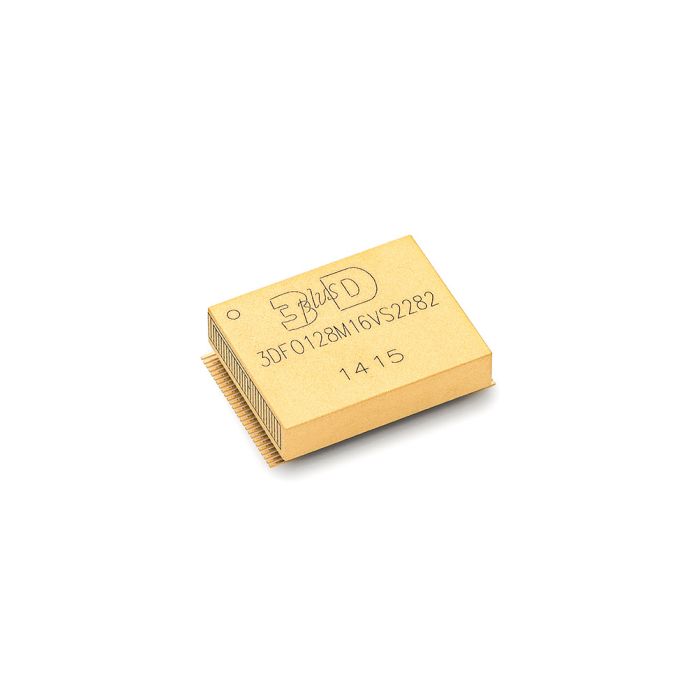

3DFO128M16VS2282

The 3DFO128M16VS2282 is a 3.0 V single power 128 Mbit Flash memory. The memory organised in 2 banks of 4M x16 bits that can be accessed by activating each individual #CE and #WP/ACC control signals. The simultaneous read/write operations allow data to be continuously read from one bank while executing erase/program in any other bank. Plus, there is no latency between read and write operations.

Hardware data protection measures include a low VCC detector that automatically inhibits write operations during power transitions. Thanks to power management circuits, the mempry can reduce its power consumption to nearly zero during inactive periods.

All these features enhanced by 3D Plus technology, make this memory a cost-effective solution for low power and high-capacity data storage needs. The module packaged in a SOP 54 is available for Commercial, Industrial or Military temperature range. It is also available with screening options up to space grade level.
