3DFO2G08VS4215
3DFO2G08VS4215
3D Plus
3.0V, 2 Gbit Memory Module: 16-bit bus width, NOR Flash based on 64M x 8

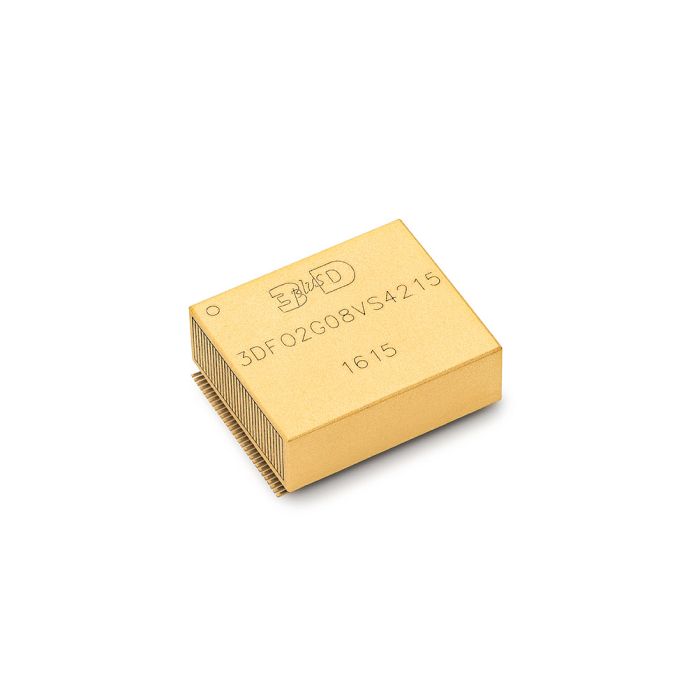

The 3DFO2G08VS4215 is a 3.0 V single power 2 Gbit Flash memory organised in 4 banks with separate chip enable (#CE) controls. It requires only a single 3.0 volt power supply for both read and write functions. In addition to VCC input, a high-voltage accelerated program (#WP/ACC) input provides shorter programming times through increased current. The sector erase architecture allows memory sectors to be erased and reprogrammed without affecting the data contents of other sectors.
Hardware data protection measures include a low VCC detector that automatically inhibits write operations during power transitions. Persistent Sector Protection provides in- system, command-enable protection of any combination of sectors using a single power supply at VCC. Password Sector Protection prevents unauthorized write and erase operations in any combination of sectors through a user-defined 64-bit password. The module packaged in a SOP 60 is available for Commercial, Industrial or Military temperature range. It is also available with screening options up to space grade level.
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Product Type | NOR FLASH |
| Data_Sheet |
To request a datasheet, contact a member of our high-reliability team [email protected] |
| Memory | |
| Power Supply | |
| Pin Assignment | SOP 60 - Pitch 0.50 mm |
| Temperature Range |
|
| Features |
|
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
