3DFS512M04VS2722
3DFS512M04VS2722
3D Plus
3.0 V, 512 Mbit QSPI FLASH NOR, based on 128M

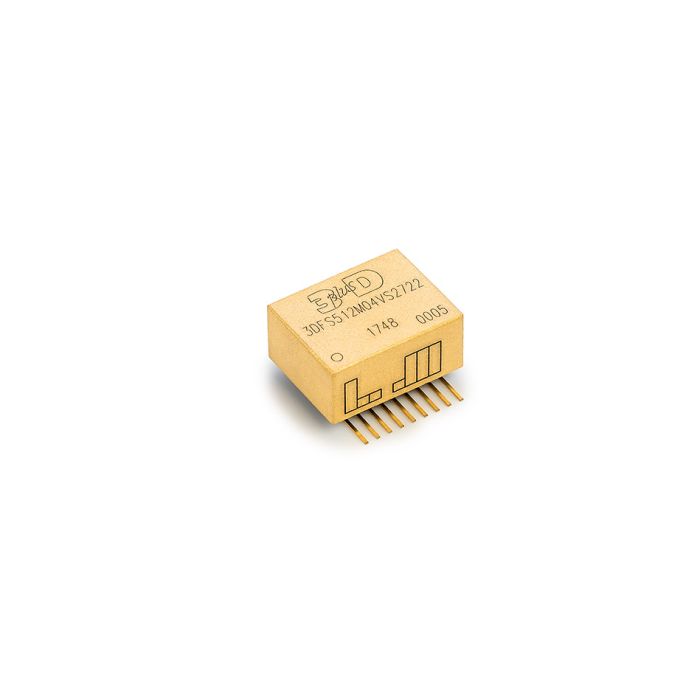

The 3DFS512M04VS2722 is a Quad SPI Flash NOR memory organised in 4 banks of 128 Mbit each with distinct chip enable #CEn (n from 0 to 3) controls. It requires only a single 3.0 V power supply for both read and write functions.
Thanks to dual SPI and quad SPI interfaces, and Fast Read mode feature, our serial NOR Flash memory can achieve high throughput (up to 133 MHz), which makes it suitable for high speed circuit applications. It is highly suitable for code storage in embedded systems. Thanks to the SPI interface, the 3DFS512M04VS2722 achieves very low pin count. It is packaged in a 18 pin SOP.
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Product Type | NOR FLASH SPI |
| Data_Sheet |
To request a datasheet, contact a member of our high-reliability team [email protected] |
| Memory | |
| Power Supply | |
| Pin Assignment | SOP 18 - Pitch 1.27 mm |
| Temperature Range |
|
| Features |
|
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
