4480A
4480A
Bird

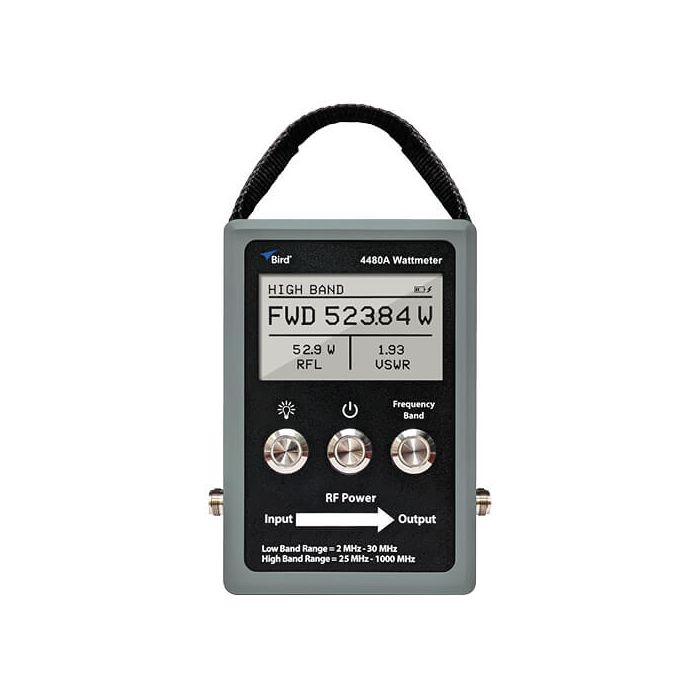

Element-Free RF Wattmeter for CW/Digital Transmissions
Take control of your RF measurements with the Bird 4480A RF Wattmeter. Engineered with your needs in mind, this innovative element-free design delivers precise, real-time results without the hassle of traditional components. Whether you're in telecommunications, broadcasting, or defence, the 4480A guarantees accuracy for both Continuous Wave (CW) and digitally modulated signals. Streamline your workflow, enhance system reliability, and perform at your best with the Bird 4480A.
Bird 4480A Key Features
- Ultimate Accuracy: ±4% precision ensures your RF systems operate efficiently and reliably.
- Broad Frequency Coverage: From 2 MHz to 1000 MHz, the 4480A meets the demands of any RF application.
- High Power Capacity: Handles power levels up to 10,000 watts, making it one of the most versatile wattmeters available.
- Element-Free Design: No need for frequency-specific components, simplifying your operations.
- Supports CW & Digital Transmissions: Accurately measures both Continuous Wave and digitally modulated signals, ensuring flexibility across applications.
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Weight (kg) | 1.32 |
| Whats Included |
Charger, Type-DC Jack 110/220V AC, |
| Dimensions | 7.3 in W x 5 in H x 2.65 in D (185.42 mm W x 127 mm H x 67.31 mm D) |
| Frequency Range |
Low Band: 2 MHz to 30 MHz High Band: 25 MHz to 1000 MHz |
| Peak average ratio | 10 dB max |
| Power range |
2 MHz to 30 MHz: 10 W to 10 kW, low band |
| Display Type | LCD - Transflective, white LED backlit |
| Connectors |
Input: Type N(f); QC type, field changeable |
| Battery | Internal, NiMH 6-AA |
| Battery Life | Minimum 8-10 hours |
| Power Supply | DC 12V, 2A (0.6A max. draw) |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
