4723-000
4723-000
Bird

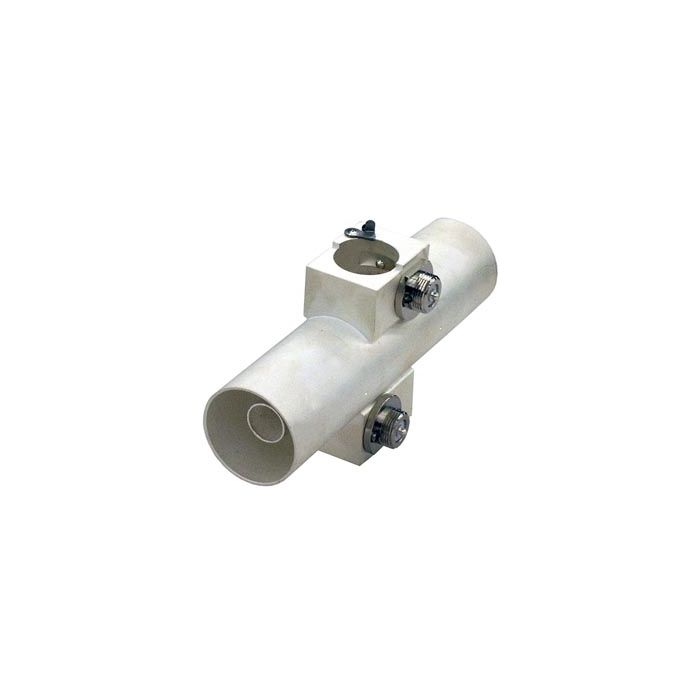

1-5/8" Thruline® Unflanged RF Line Section
4723-000 is a 1-5/8" Unflanged Recessed 50 Ohm, Line Section designed for insertion between a RF transmitter and antenna or RF load. The line is equipped with two sockets for simultaneous measurement of forward and reflected power. Select from a wide variety of Bird® Plug-In Elements for the desired power rating and frequency range.
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Product Brand Name | 1-5/8 in Thruline Line Section |
| Dimensions | Length 6.38 in |
| Element sockets | 2 |
| Line size | 1-5/8 in |
| Connectors | UnFlg. (Rec. 0.438") |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
