Bird RF
Dual-Socket, Directional RF Power Sensor

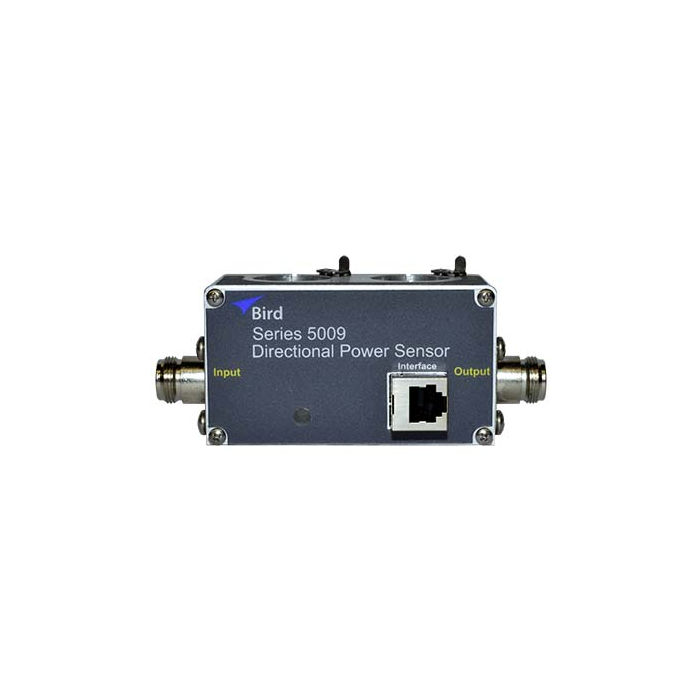

The 5009, RF Power Sensor connects to the 3141, Channel Power Monitor (CPM) via RJ42 Interface and is a highly economical RF power measurement tool offering reliable results for hundreds, not thousands of dollars. The dual-socket, Thruline® RF power sensor's flexible design allows the user to select from a variety of Bird DPM Series, Plug-In Elements that span over a wide range of frequencies and power levels as well as dozens of field changeable RF connectors to tailor the unit to your needs.
The 5009 RF Sensor provides both forward and reflected power measurements that are NIST traceable. These sensors are intended for use at the transmit combiner output, in order to provide both combiner power, as well as antenna VSWR information.
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Product Brand Name | Directional RF Power Sensor |
| Manufacturer | Bird |
| Relative Humidity | 95% (max), non-condensing |
| Frequency Range | Element dependent, 2 MHz to 1000 MHz (DPM elements only. Contact factory for complete list of power & frequency bands for plug-in elements.) |
| VSWR Range | 1.05:1 (max) |
| Forward Power Range | Element dependent, 0.1 W to 1 kW full |
| Power Accuracy | ±5% of reading (15 to 35 °C) |
| Interface | RF: N (F), normally supplied, RJ-25 |
| Temperature Range | Operating: -10 to +50 °C (14 to 122 °F), Storage: -40 to +75 °C (-40 to 167 °F) |
| Dimensions | 2.3" x 2.1" x 3.5" (58 x 53 x 89 mm), excluding connectors |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
