ETS-Lindgren
5600 Series Tabletop RF Test Enclosure - Small (12 x 18 x 8 in)

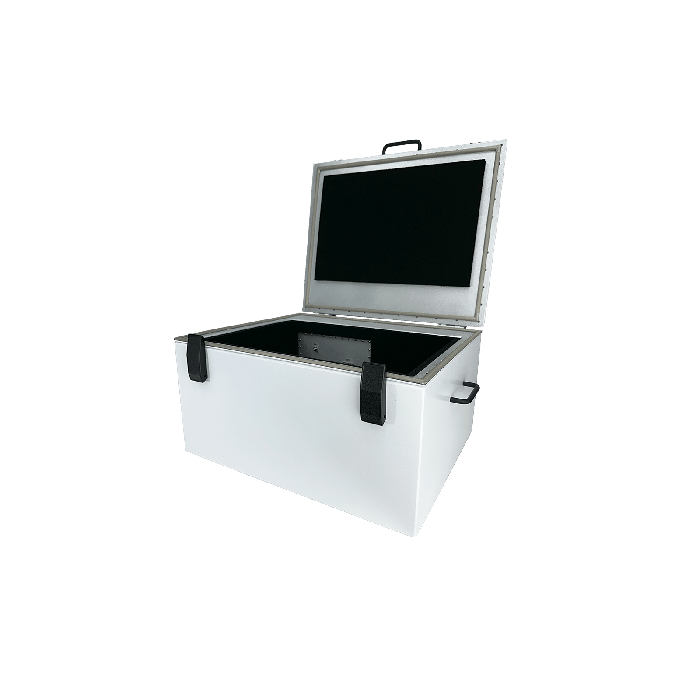

Model 5601 Tabletop RF Test Enclosure
The Model 5601 is the most compact enclosure in the ETS-Lindgren 5600 series, providing a portable, self-contained test environment for wireless devices from 300 MHz to 18 GHz. Its welded aluminium construction and dual-layer door with precision braid-over-foam RF seal deliver 80 dB+ of RF isolation, making it ideal for development, production, and quality assurance testing of Wi-Fi, Bluetooth, Zigbee, RFID, 5G, and IoT devices.
The interior is lined with ETS-Lindgren microwave absorber to eliminate unwanted reflections, and interchangeable I/O connector panels allow the enclosure to be reconfigured in the field as testing requirements evolve. Panel options include SMA, DB9, USB 2.0, Ethernet (PoE), DC power, and AC power interfaces.
Key Features:
- 80 dB+ RF Isolation from 300 MHz to 18 GHz
- Compact Tabletop Format: 30.48 x 45.72 x 20.32 cm (12 x 18 x 8 in)
- Microwave Absorber Lined Interior
- Dual-Layer Door with Braid-Over-Foam RF Seal Rated to 50,000+ Cycles
- Interchangeable I/O Connector Panels (5 Options Available)
- Welded Aluminium Construction with Conversion Coated Metal
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Frequency Range | 300 MHz to 18 GHz |
| Configuration | Tabletop |
| Shielding effectiveness | 80 dB @ 300 MHz to 3 GHz; 80 dB @ 3 GHz to 6 GHz; 70 dB @ 6 GHz to 18 GHz |
| Outer dimensions ( Lx W x H) | 30.48 cm x 45.72 cm x 20.32 cm (12 in x 18 in x 8 in) |
