6502
6502
ETS-Lindgren UK & Ireland Distributor

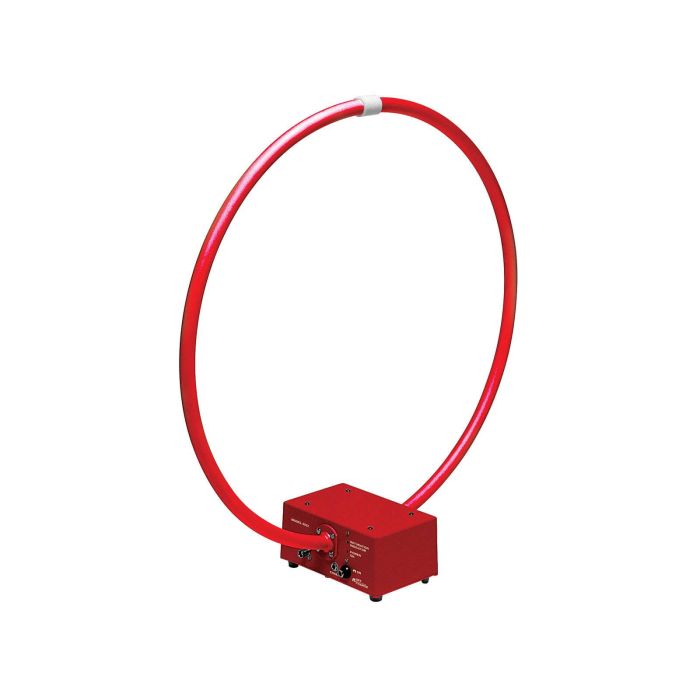

Active Shielded Loop Antenna
The Model 6502 is an active receiving loop antenna specifically designed to perform commercial emissions standards testing, such as CISPR 16-1-4.
The 6502 can also be used for any magnetic testing per MIL-STD-461B. It features an active design with excellent sensitivity and dynamic range for precise magnetic field measurements.
Key Features
- 9 kHz to 30 MHz frequency range
- Active receiving loop design
- Designed for CISPR 16-1-4 emissions testing
- High sensitivity and wide dynamic range
- Internal rechargeable batteries
- Individually calibrated
Contact us for Lead Time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Dimensions | 12 cm (4.72 in) x 19 cm (7.48 in) x 67.3 cm (26.50 in) (L x W x H) |
| Weight | 2 kg (4.41 lb) |
| Maximum Frequency | 30 MHz |
| Minimum Frequency | 9_khz |
| Frequency Range | 9 kHz – 30 MHz |
| Gain | ~1 to 5 dBi |
| Max Input Power | Receive only (active) |
| Construction | N/A (Rx Only) |
| Impedance | 50 Ω (pre-amp output) |
| Antenna Type | Loop |
| Polarisation | Linear |
| Pattern Type | Omnidirectional |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
