6689-021
6689-021

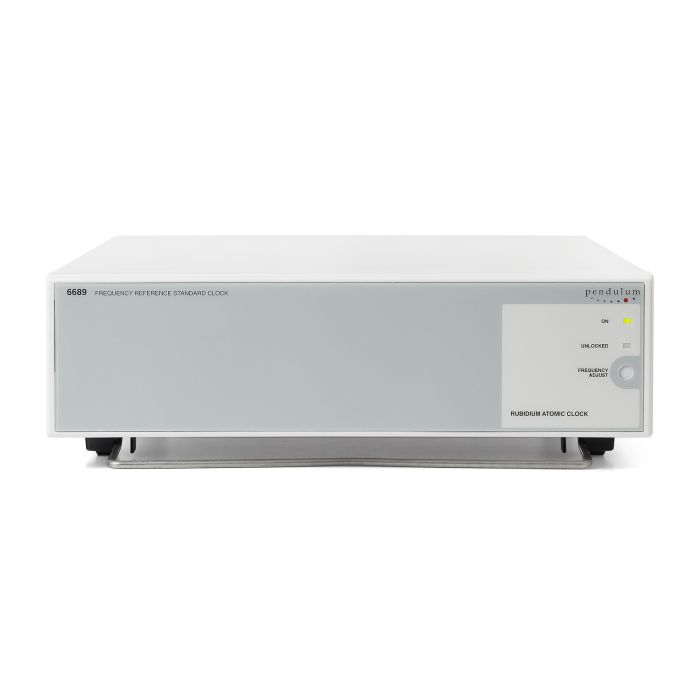

Pendulum Instruments
Rubidium incl. option 70; 10x 10 MHz and 1x 5MHz outputs
The Pendulum Frequency References; model 6689 with a Rubidium clock and model 6688 with a high-stability ovencontrolled crystal oscillator, are designed for use in test systems, where a very high stability frequency reference is required and where multiple instruments or testers need to be supplied.
The Frequency References are also suited in calibration laboratories for calibrating various instrumentation, like frequency counters and synthesizers. The 6689 Rubidium Reference can be used as a primary lab reference, ensuring a frequency drift due to aging of less than 0.001 ppm during 10 years.
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Power Consumption |
Less than 70W at warm-up,
Less than 30W continuous operation |
| Safety | Compliant to EN 61010-1, Cat II, pollution degree 2, CE |
| Key Features |
|
| Accessories |
|
| EMI | Compliant to EN 55011 ISM group, class B and EN 50082-2, CE |
| Calibration and Extended Warranty |
|
| Storage Temperature | -40°C to +70°C |
| Operating Temperature | 0°C to +50°C |
| Dimensions | 315 x 86 x 395 mm |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
