FDA-301
FDA-301
Pendulum Instruments

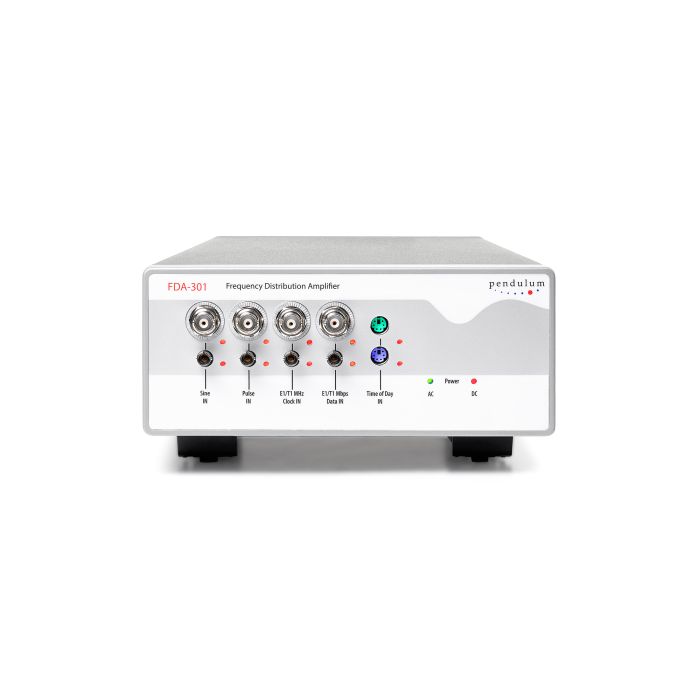

10 MHz Frequency Distribution Amplifier
The Pendulum FDA-301 is a very versatile Frequency Distribution Amplifier for distributing a central time sync or frequency reference signal to multiple users, between rooms, floors, buildings and sites. The FDA-301 can distribute sine, pulse (e.g. 1-pps or IRIG DCLS), serial ToD and standard telecom signals, via noise-free optical fibers to up to 18 receivers, located up to 2 km away. The FDA-301 offers modularity, redundancy and ease-of-use.
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Safety | EN 61010-1:2011, pollution degree 2, meas cat I, CE |
| Key Features |
|
| Shock | Half-sine 30G per MIL-PRF-28800F; Bench handling |
| Vibration | Random and sinusoidal according to MIL-PRF-28800F, Class 3 |
| Accessories |
|
| Transit Drop Test | Heavy-duty transport case and soft carrying case tested according to MIL-PRF-28800F |
| Class | MIL-PRF-28800F, Class 3 |
| Calibration and Extended Warranty | Two years Extended warranty to a total of 4 years (without product registration, or 5 years (with product registration). |
| Built in Options |
|
| EMC | EN 61326 :2013-6, increased test levels according to EN 61000-6-2:2008, Group 1, class B, CE |
| Storage Temperature | -40°C to +70°C |
| Operating Temperature | 0°C to +50°C |
| Dimensions | 210 x 90 x 395 mm |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
