7.001.919.123
7.001.919.123
Hummel
Inserts 19-pole with dip solde
7.001.919.123 - Inserts 19-pole with dip solde Also known as 7001919123. White. Minimum mating cycles : > 1000
Contact us for Lead Time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Product Brand Name | 7001919123 |
| Manufacturer | Hummel |
| Additional Description |
|
| Colour | White |
| Weight (kg) | 0.06204 |
| Customs tariff number | 85366990 |
| EAN code | 4033878500729 |
| ETIM 7 | EC003557 |
| Packaging Unit | 5 |
| Characteristic of connection | Solder |
| Number of poles | 19 |
| Insert | Pin |
| Signal contact diameter (mm) | 1 |
| Power contact diameter (mm) | 1.5 |
| Minimum mating cycles | > 1000 |
| Insulating body material | PA 6, PBT |
| Number of signal contacts | 16 |
| Number of power contacts | 3 |
| Degree of protection | 3 |

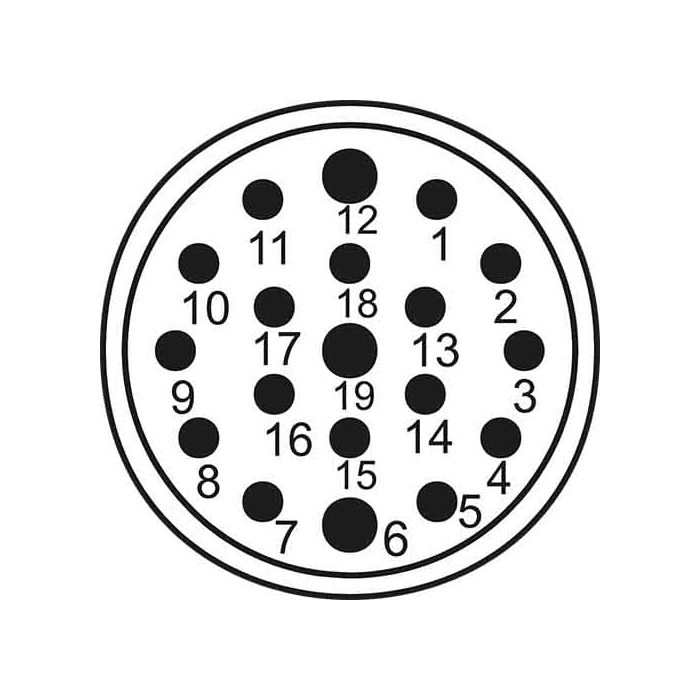

| Pole picture | 18 + PE (Pos. 12) |
| Contact diameter | 1 mm│1.5 mm |
| Nominal current signal A | 8 |
| Nominal current power A | 10 |
| Nominal voltage at_degree of pollution 3 signal (V) | 100 |
| Nominal voltage at degree of pollution 3 power (V) | 100 |
| Test voltage signal (V) | 1500 |
| Test voltage power (V) | 1500 |
| Insulation resistance signal (Ohm) | > 10^6 |
| Insulation resistance power (Ohm) | > 10^6 |
| Max contact resistance signal (mOhm) | 3 |
| Max contact resistance power (mOhm) | 3 |
| Dip solder contacts length mm | 1.5 |
| Flammability | V-0 (UL 94) |
| Temperature Range | -40°C to +125°C |
