Hummel

Inserts 26-pole with solder

7.001.926.103 - Inserts 26-pole with solder Also known as 7001926103. White. Minimum mating cycles : > 50
Contact us for lead time

Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.

More Information
Attribute Value
Product Brand Name 7001926103
Manufacturer Hummel
Additional Description
  • Characteristic of connection : Solder
  • Color contact insert : White
  • Contact-Ø signal [mm] : 1
  • Degree of Protection : 3
  • Dip solder contacts length [mm] :
  • Flammability CE : V-0 (UL 94)
  • Insert : Pin
  • Insulation resistance signal : > 10^12
  • Material insulating body : PA 6, PBT
  • Max. contact resistance signal : 3
  • Nominal voltage at degree of pollution 3 signal : 150
  • Nominal current signal : 8
  • Number of contacts power :
  • Number of poles : 26

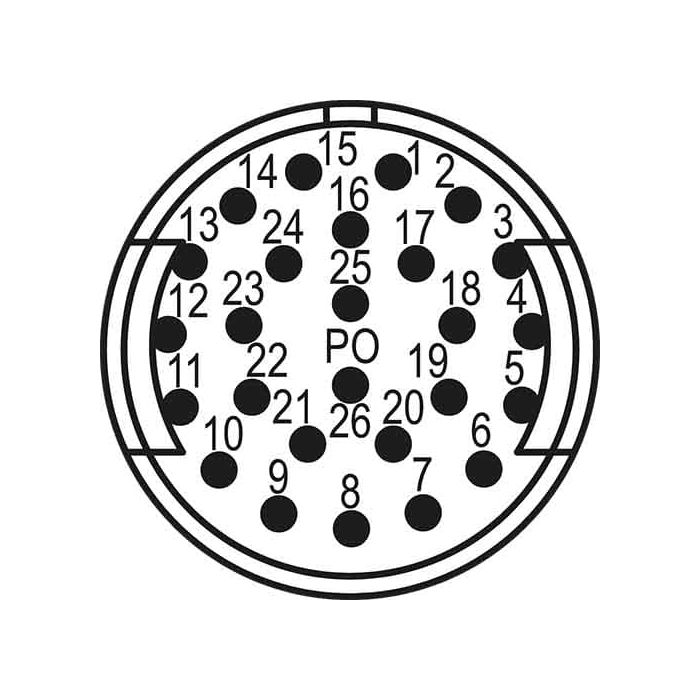

  • Pole picture : 26
  • Temperature range : -40°C to +125°C
  • Test voltage signal [v-] : 1500
Colour White
Weight (kg) 0.0022
Customs tariff number 85366990
EAN code 4033878500774
ETIM 7 EC003557
Packaging Unit 1
Characteristic of connection Solder
Number of poles 26.0000
Insert Pin
Signal contact diameter (mm) 1.0000
Minimum mating cycles > 50
Insulating body material PA 6, PBT
Number of signal contacts 26.0000
Degree of protection 3
Pole picture 26
Nominal current signal A 8.0000
Nominal voltage at_degree of pollution 3 signal (V) 150.0000
Test voltage signal (V) 1500.0000
Insulation resistance data (Ohm) -
Insulation resistance signal (Ohm) > 10^12
Insulation resistance power (Ohm) -
Max contact resistance signal (mOhm) 3.0000
Max contact resistance power (mOhm) 3.0000
Flammability V-0 (UL 94)
Temperature Range -40°C to +125°C
