Hummel 7.001.981.118 Inserts 9-pole (8+1) with dip

7.001.981.118

7.001.981.118

Hummel

Inserts 9-pole (8+1) with dip

7.001.981.118 - Inserts 9-pole (8+1) with dip Also known as 7001981118. White. Minimum mating cycles : > 1000
In stock
£15.20
More Information
Attribute Value
Product Brand Name 7001981118
Manufacturer Hummel
Additional Description
  • Characteristic of connection : Dip-solder (PCB)
  • Color contact insert : White
  • Contact-Ø signal [mm] : 1
  • Degree of Protection : 3
  • Dip solder contacts length [mm] : 17
  • Flammability CE : V-0 (UL 94)
  • Insert : Socket
  • Insulation resistance signal : > 10^10
  • Material insulating body : PA 6, PBT
  • Max. contact resistance signal : 3
  • Nominal voltage at degree of pollution 3 signal : 200
  • Nominal current signal : 8
  • Number of contacts power : 1
  • Number of poles : 9

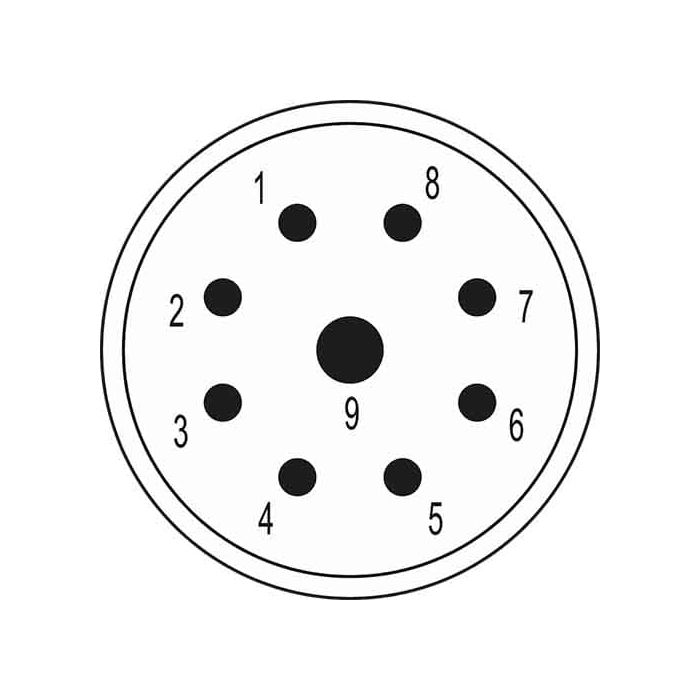

  • Pole picture : 8 + 1
  • Temperature range : -40°C to +125°C
  • Test voltage signal [v-] : 2500
Colour White
Weight (kg) 0.00346
Customs tariff number 85366930
EAN code 4033878500903
ETIM 7 EC003557
Packaging Unit 50
Characteristic of connection Dip-solder (PCB)
Number of poles 9
Insert Socket
Signal contact diameter (mm) 1
Power contact diameter (mm) 2
Minimum mating cycles > 1000
Insulating body material PA 6, PBT
Number of signal contacts 8
Number of power contacts 1
Degree of protection 3
Pole picture 8 + 1
Contact diameter 1 mm│2 mm
Nominal current signal A 8
Nominal current power A 20
Nominal voltage at_degree of pollution 3 signal (V) 200
Nominal voltage at degree of pollution 3 power (V) 200
Test voltage signal (V) 2500
Test voltage power (V) 2500
Insulation resistance signal (Ohm) > 10^10
Insulation resistance power (Ohm) > 10^10
Max contact resistance signal (mOhm) 3
Max contact resistance power (mOhm) 3
Dip solder contacts length mm 17
Flammability V-0 (UL 94)
Temperature Range -40°C to +125°C
