Hummel 7.003.907.102 Insert 7-poles for sockets 2mm

7.003.907.102

7.003.907.102

Hummel

Insert 7-poles for sockets 2mm

7.003.907.102 - Insert 7-poles for sockets 2mm Also known as 7003907102. White. Minimum mating cycles : > 1000
In stock
£2.50
More Information
Attribute Value
Product Brand Name 7003907102
Manufacturer Hummel
Additional Description
  • Characteristic of connection : Crimp
  • Color contact insert : White
  • Contact-Ø signal [mm] : 2
  • Degree of Protection : 3
  • Dip solder contacts length [mm] :
  • Flammability CE : V-0 (UL 94)
  • Insert : Socket
  • Insulation resistance signal : > 10^10
  • Material insulating body : PA 6, PBT
  • Max. contact resistance signal : 3
  • Nominal voltage at degree of pollution 3 signal : 300
  • Nominal current signal : 20
  • Number of contacts power :
  • Number of poles : 7

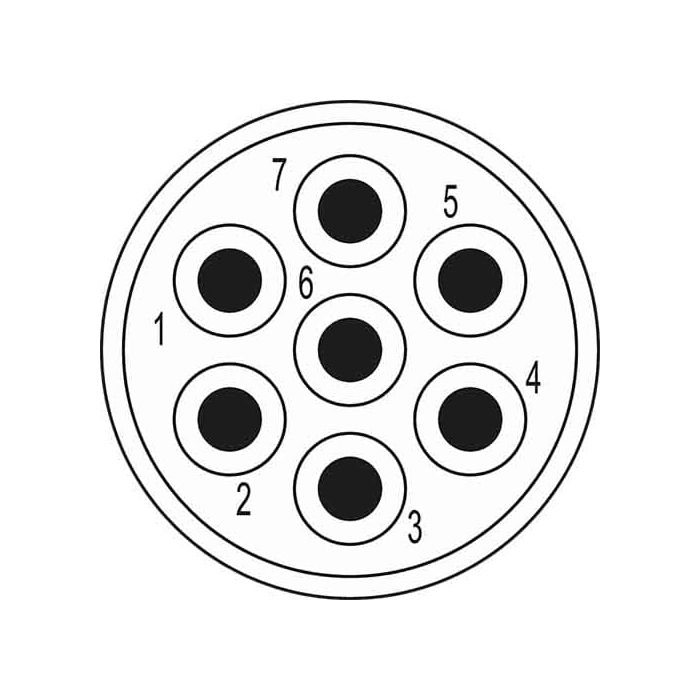

  • Pole picture : 7
  • Temperature range : -40°C to +125°C
  • Test voltage signal [v-] : 2500
Colour White
Weight (kg) 0.00146
Customs tariff number 85472000
EAN code 4033878501306
ETIM 7 EC003557
Packaging Unit 100
Characteristic of connection Crimp
Number of poles 7
Insert Socket
Signal contact diameter (mm) 2
Minimum mating cycles > 1000
Insulating body material PA 6, PBT
Number of signal contacts 7
Degree of protection 3
Suitable signal contacts 7010902002
Pole picture 7
Contact diameter 2 mm
Nominal current signal A 20
Nominal voltage at_degree of pollution 3 signal (V) 300
Test voltage signal (V) 2500
Insulation resistance signal (Ohm) > 10^10
Max contact resistance signal (mOhm) 3
Max contact resistance power (mOhm) 3
Flammability V-0 (UL 94)
Temperature Range -40°C to +125°C
More Information
Attribute Value
Data Sheet Click here to view
