Hummel
Insert 3-poles for pins 2mm
7.003.983.101 - Insert 3-poles for pins 2mm Also known as 7003983101. White. Minimum mating cycles : > 1000
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Product Brand Name | 7003983101 |
| Manufacturer | Hummel |
| Additional Description |
|
| Colour | White |
| Weight (kg) | 0.005 |
| Customs tariff number | 85472000 |
| EAN code | 4033878501566 |
| ETIM 7 | EC003557 |
| Packaging Unit | 100 |
| Characteristic of connection | Crimp |
| Number of poles | 3.0000 |
| Insert | Pin |
| Signal contact diameter (mm) | 2.0000 |
| Minimum mating cycles | > 1000 |
| Insulating body material | PA 6, PBT |
| Number of power contacts | 3.0000 |
| Degree of protection | 3 |
| Suitable power contacts | 7010982001 |

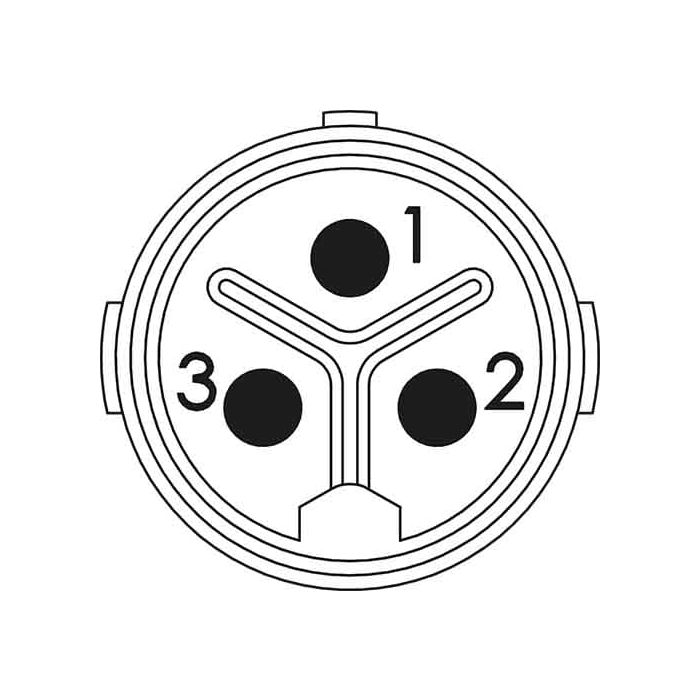

| Pole picture | 3 |
| Contact diameter | 2 mm |
| Nominal current power A | 20.0000 |
| Nominal voltage at degree of pollution 3 power (V) | 400.0000 |
| Test voltage power (V) | 2500.0000 |
| Insulation resistance power (Ohm) | > 10^10 |
| Max contact resistance signal (mOhm) | 3.0000 |
| Suitable crimping tool | 7000900904 |
| Flammability | V-0 (UL 94) |
| Temperature Range | -40°C to +125°C |
