7.010.981.202
7.010.981.202
Hummel

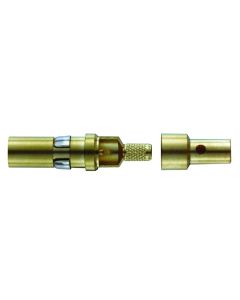

Crimp socket 1.25 mm
7.010.981.202 - Crimp socket 1.25 mm Also known as 7010981202. . Minimum mating cycles : > 1000
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Product Brand Name | 7010981202 |
| Manufacturer | Hummel |
| Additional Description |
|
| Length (mm) | 16.1 |
| Weight (kg) | 0.00026 |
| Customs tariff number | 85366990 |
| EAN code | 4033878502341 |
| ETIM 7 | EC000796 |
| Packaging Unit | 100 |
| Characteristic of connection | Crimp |
| Insert | Socket |
| Signal contact diameter (mm) | 1.25 |
| Minimum mating cycles | > 1000 |
| Crimp range | 0.5 – 1.5 mm² |
| Material contact surface | nickel, gold plated (0.25 µm) |
| Contact diameter | 1.25 mm |
| Crimp contact | Crimp socket signal 1,25 mm machined |
| Contact diameter crimping range (mm) | 2.4 |
| Material contact | Copper-zinc alloy |
| Cross section | 0.5 – 1.5 mm² |
| Crimp tool setting 1 (mm) | 0.7 |
| Crimp tool setting 2 mm | 0.73 |
| Crimp tool setting 3 (mm) | 0.79 |
| Crimp tool setting 4 (mm) | 0.88 |
| AWG | 16 – 20 |
| Suitable crimping tool | 7000900904 |
