7.208.600.000
7.208.600.000
Hummel

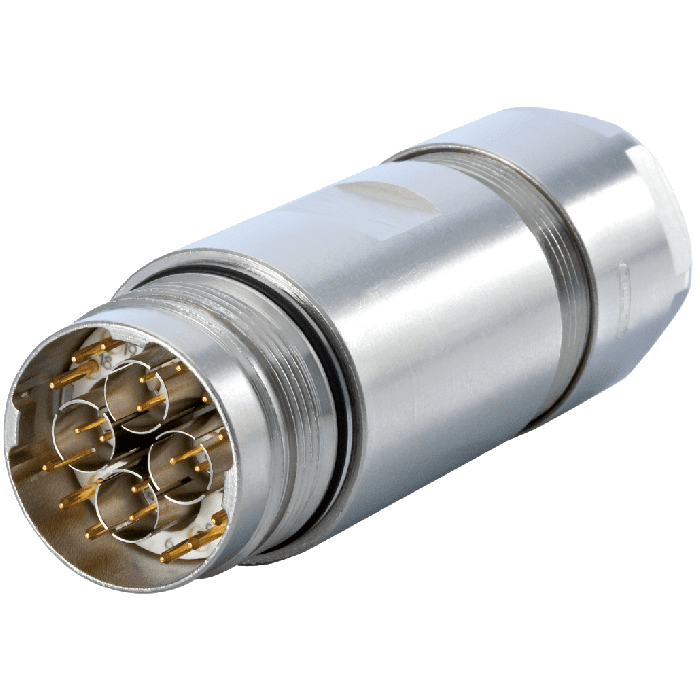

M23 Fast Ethernet PoE coupler connector housing
M23 Fast Ethernet PoE coupler connector housing from Hummel. Also known as 7208600000. The body material is brass. Die Casting. Protection class IP 67
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Product Brand Name | 7208600000 |
| Manufacturer | Hummel |
| Additional Description |
|
| Weight (kg) | 0.07866 |
| Further information | Housing without contact inserts. Electrical data depend on the contact insert |
| Customs tariff number | 85366990 |
| EAN code | 4033878503096 |
| ETIM 7 | EC003556 |
| Body size | M23 |
| Housing type | Coupler |
| Material housing | brass. Die Casting |
| Material housing surface | Nickel |
| External thread - plug in side | M23 x 1 |
| Degree of protection | 3 |
| Locking type | Screw connection |
| Shield | shielded |
| Material seals / O-rings | NBR |
| Cable diameter (mm) | 11 - 17 |
| Wrench size SW1 / SW2 (mm) | 24/24 |
| Protection class | IP 67 |
| Usage | Data |
| Body size | M23 |
| Housing type | Coupler |
| Housing material | Brass. Die Casting |
| Housing surface material | Nickel |
| Temperature Range | -40°C to +125°C |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
