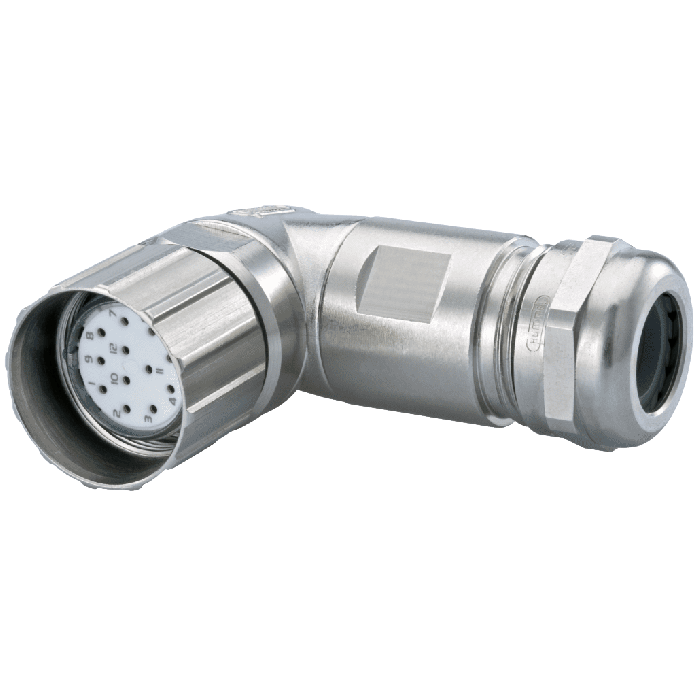

Hummel 7.300.400.000 M23 Signal right-angle connector housing

7.300.400.000

7.300.400.000

Hummel

M23 Signal right-angle connector housing

M23 Signal right-angle connector housing from Hummel. Also known as 7300400000. The body material is brass. Die Casting. Protection class IP 67, IP 69 K
In stock
£28.80
More Information
Attribute Value
Product Brand Name 7300400000
Manufacturer Hummel
Additional Description
  • Cable Diameter [mm] : 5- 10
  • Housing Type : Right angled
  • Internal thread plug-in side : M23 x 1
  • Knurled nut-⌀ plug-in side [mm]: 27.2
  • Locking type : Screw connection
  • Material housing : Nickel
  • Material seals/o-rings : NBR
  • Protection class : IP 67, IP 69 K
  • Shield : shielded
  • Suitable contact inserts :
  • Temperature range : -40° C to +125° C
  • Wrench size (SW1/SW2) : 22/24
Weight (kg) 0.14681
Further information Housing without contact inserts. Electrical data depend on the contact insert
Customs tariff number 85366990
EAN code 4033878503218
ETIM 7 EC003556
Body size M23
Housing type Right angled
Material housing brass. Die Casting
Material housing surface Nickel
Coding -
Internal thread - plug in side M23 x 1
Knurled nut diameter - plug in side (mm) 27.2
Degree of protection 3
Locking type Screw connection
Shield shielded
Material seals / O-rings NBR
Cable diameter (mm) 5 - 10
Wrench size SW1 / SW2 (mm) 22/24
Protection class IP 67, IP 69 K
Usage Signal
Body size M23
Housing type Right angled
Housing material Brass. Die Casting
Housing surface material Nickel
Temperature Range -40°C to +125°C
More Information
Attribute Value
Data Sheet Click here to view
