Hummel

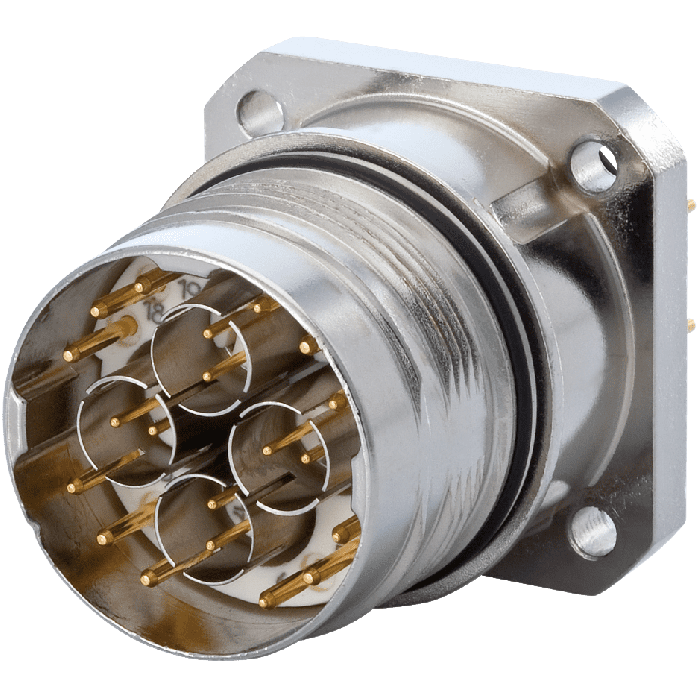

M23 Fast Ethernet PoE panel connector housing
M23 Fast Ethernet PoE panel connector housing from Hummel. Also known as 7408000000. The body material is Die Casting. Protection class IP 67
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Product Brand Name | 7408000000 |
| Manufacturer | Hummel |
| Additional Description |
|
| Weight (kg) | 0.023 |
| Further information | Housing without contact inserts. Electrical data depend on the contact insert |
| Customs tariff number | 85366990 |
| EAN code | 4033878503379 |
| ETIM 7 | EC003556 |
| Body size | M23 |
| Housing type | Panel |
| Material housing | Die Casting |
| Material housing surface | Nickel |
| Installation type | Flange. Front wall |
| External thread - plug in side | M23 x 1 |
| Degree of protection | 3 |
| Locking type | Screw connection |
| Shield | unshielded |
| Material seals / O-rings | NBR |
| Flange (mm) | 26 x 26 |
| Hole distance (mm) | 19.8 |
| Hole diameter (mm) | 4 x Ø 2,7 |
| Protection class | IP 67 |
| Usage | Data |
| Body size | M23 |
| Housing type | Panel |
| Housing material | Die Casting |
| Housing surface material | Nickel |
| Temperature Range | -40°C to +125°C |
