Hummel

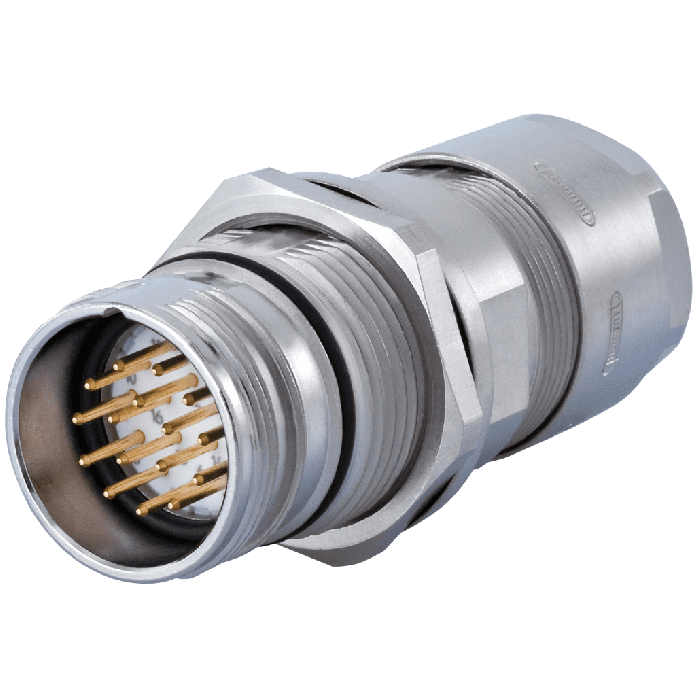

M23 Signal panel connector housing
M23 Signal panel connector housing from Hummel. Also known as 7486400000. The body material is brass. Die Casting. Protection class IP 67, IP 69 K
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Product Brand Name | 7486400000 |
| Manufacturer | Hummel |
| Additional Description |
|
| Length (mm) | 66.7 |
| Weight (kg) | 0.07877 |
| Further information | Housing without contact inserts. Electrical data depend on the contact insert. 7.439.XXX.XXX only pin insert possible |
| Customs tariff number | 85366990 |
| EAN code | 4033878503751 |
| ETIM 7 | EC003556 |
| Body size | M23 |
| Housing type | Panel |
| Material housing | brass. Die Casting |
| Material housing surface | Nickel |
| Coding | - |
| Installation type | Rear wall. Single hole mounting. Strain relief |
| External thread (AG) | M25 x 1.5 |
| External thread - plug in side | M23 x 1 |
| Degree of protection | 3 |
| Locking type | Screw connection |
| Shield | shielded |
| Seal type | O-Ring |
| Material seals / O-rings | NBR |
| Panel hole (mm) | Ø 25 + 0,1 |
| Drill form (mm) | - |
| Wall thickness (mm) | max. 8 |
| Flange (mm) | - |
| Hole diameter (mm) | - |
| Cable diameter (mm) | 3 - 7 |
| Wrench size SW1 / SW2 (mm) | 24/24 |
| Protection class | IP 67, IP 69 K |
| Usage | Signal |
| Body size | M23 |
| Housing type | Panel |
| Housing material | Brass. Die Casting |
| Housing surface material | Nickel |
| Temperature Range | -40°C to +125°C |
