Hummel

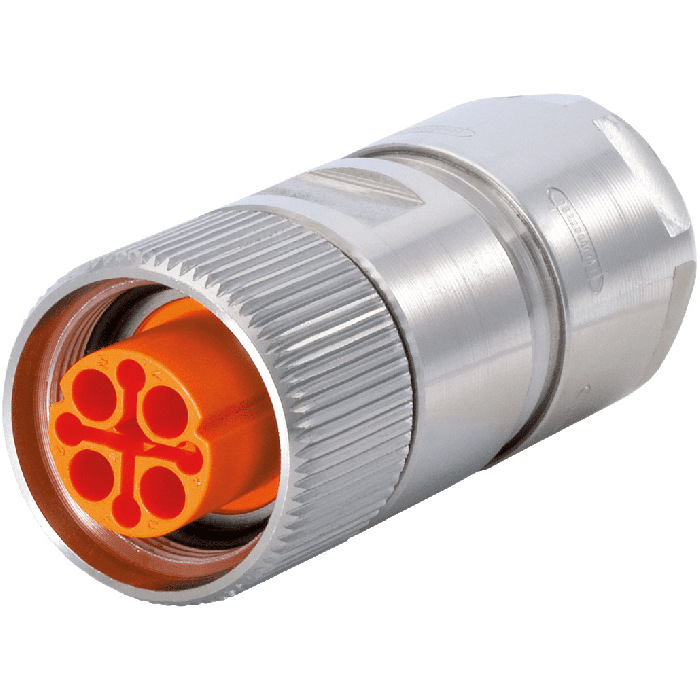

M16 cable connector housing made of stainless steel

M16 cable connector housing made of stainless steel from Hummel. Also known as 7814500000. The body material is Stainless steel 1.4404 (AISI 316). Protection class IP 67, IP 69 K
Contact us for lead time

Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.

More Information
Attribute Value
Product Brand Name 7814500000
Manufacturer Hummel
Additional Description
  • Cable Diameter [mm] : 8- 11
  • Housing Type : Cable
  • Internal thread plug-in side : M16 x 0.75
  • Knurled nut-⌀ plug-in side [mm]: 19.7
  • Locking type : Screw connection
  • Material housing :
  • Material seals/o-rings : FKM (FPM)
  • Protection class : IP 67, IP 69 K
  • Shield : shielded
  • Suitable contact inserts :
  • Temperature range : -40° C to +125° C
  • Wrench size (SW1/SW2) : 18/18
Length (mm) 46.3
Weight (kg) 0.041
Further information Housing without contact inserts. Electrical data depend on the contact insert
Customs tariff number 85366990
EAN code 4033878504680
ETIM 7 EC003556
Body size M16
Housing type Cable
Material housing Stainless steel 1.4404 (AISI 316)
Coding -
Insert Socket
External thread - plug in side -
Internal thread - plug in side M16 x 0.75
Knurled nut diameter - plug in side (mm) 19.7
Twilock / Twilock-S -
Locking type Screw connection
Shield shielded
Seal type O-Ring
Material seals / O-rings FKM (FPM)
Cable diameter (mm) 8 - 11
Wrench size SW1 / SW2 (mm) 18/18
Protection class IP 67, IP 69 K
Usage Various
Body size M16
Housing type Cable
Housing material Stainless steel 1.4404 (AISI 316)
Temperature Range -40°C to +125°C
More Information
Attribute Value
Data Sheet Click here to view
