Hummel

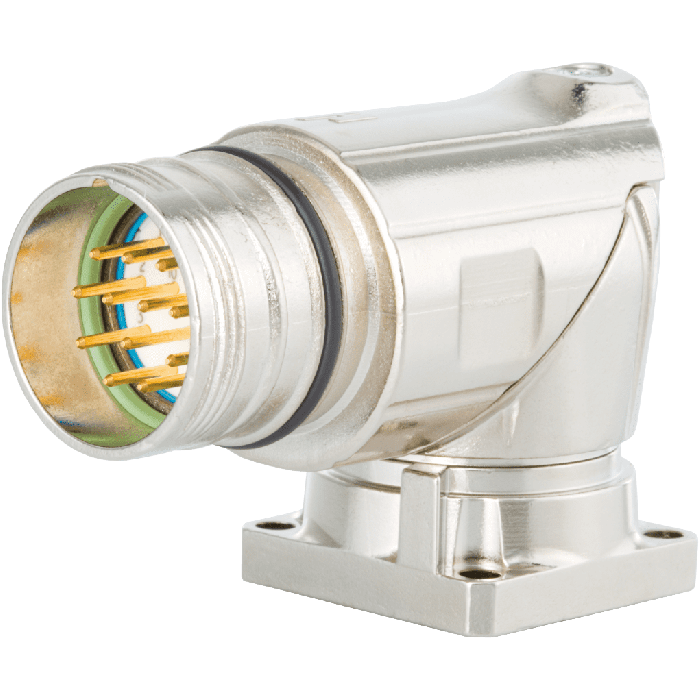

TWILOCK M23 Signal panel connector housing
TWILOCK M23 Signal panel connector housing from Hummel. Also known as 7439100000. The body material is Die Casting. Protection class IP 67, IP 69 K
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Product Brand Name | 7439100000 |
| Manufacturer | Hummel |
| Additional Description |
|
| Weight (kg) | 0.11385 |
| Further information | Housing without contact inserts. Electrical data depend on the contact insert. TWILOCK-S version is pluggable with Speedtec |
| Customs tariff number | 85366990 |
| EAN code | 4033878001851 |
| ETIM 7 | EC003556 |
| Body size | M23 |
| Housing type | Panel - right angled |
| Material housing | Die Casting |
| Material housing surface | blue passivated |
| Installation type | Flange |
| Minimum mating cycles | > 1000 |
| Version | right angled, TWILOCK |
| External thread - plug in side | M23 x 1 |
| Twilock / Twilock-S | M23 x 1 |
| Degree of protection | 3 |
| Locking type | Screw connection. Snap in |
| Shield | unshielded |
| Seal type | O-Ring |
| Material seals / O-rings | NBR |
| Rotatable degrees | 330.0000 |
| Panel hole (mm) | Ø 20 + 0,1 |
| Flange (mm) | 28 x 28 |
| Hole distance (mm) | 22.6 |
| Hole diameter (mm) | 4 x Ø 3,2 |
| Protection class | IP 67, IP 69 K |
| Usage | Signal |
| Body size | M23 |
| Housing type | Panel - Right angled |
| Housing material | Die Casting |
| Housing surface material | Blue passivated |
| Temperature Range | -40°C to +125°C |
