7.486.500.00S
7.486.500.00S
Hummel

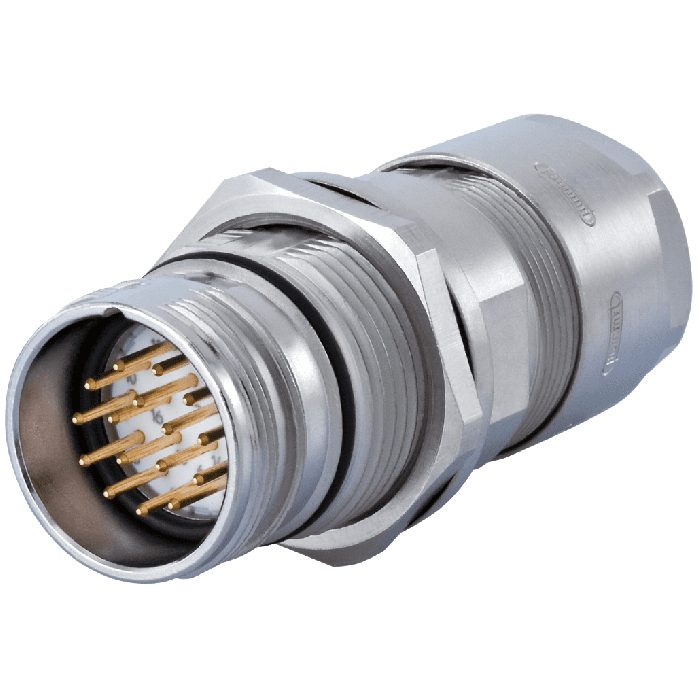

TWILOCK-S M23 Signal panel connector housing
TWILOCK-S M23 Signal panel connector housing from Hummel. Also known as 748650000S. The body material is brass. Die Casting. Protection class IP 67, IP 69 K
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Product Brand Name | 748650000S |
| Manufacturer | Hummel |
| Additional Description |
|
| Length (mm) | 66.7 |
| Weight (kg) | 0.08633 |
| Further information | Housing without contact inserts. Electrical data depend on the contact insert. TWILOCK-S version is pluggable with Speedtec |
| Customs tariff number | 85366990 |
| EAN code | 4033878003176 |
| ETIM 7 | EC003556 |
| Body size | M23 |
| Housing type | Panel |
| Material housing | brass. Die Casting |
| Material housing surface | Nickel |
| Installation type | Strain relief |
| Minimum mating cycles | > 1000 |
| Version | TWILOCK-S |
| External thread - plug in side | M23 x 1 |
| Twilock / Twilock-S | M23 x 1 |
| Degree of protection | 3 |
| Locking type | Screw connection. Snap in |
| Shield | shielded |
| Seal type | O-Ring |
| Material seals / O-rings | NBR |
| Panel hole (mm) | Ø 25 + 0,1 |
| Wall thickness (mm) | max. 8 |
| Wrench size SW1 / SW2 (mm) | 24/24 |
| Protection class | IP 67, IP 69 K |
| Usage | Signal |
| Body size | M23 |
| Housing type | Panel |
| Housing material | Brass. Die Casting |
| Housing surface material | Nickel |
| Temperature Range | -40°C to +125°C |
