Hummel

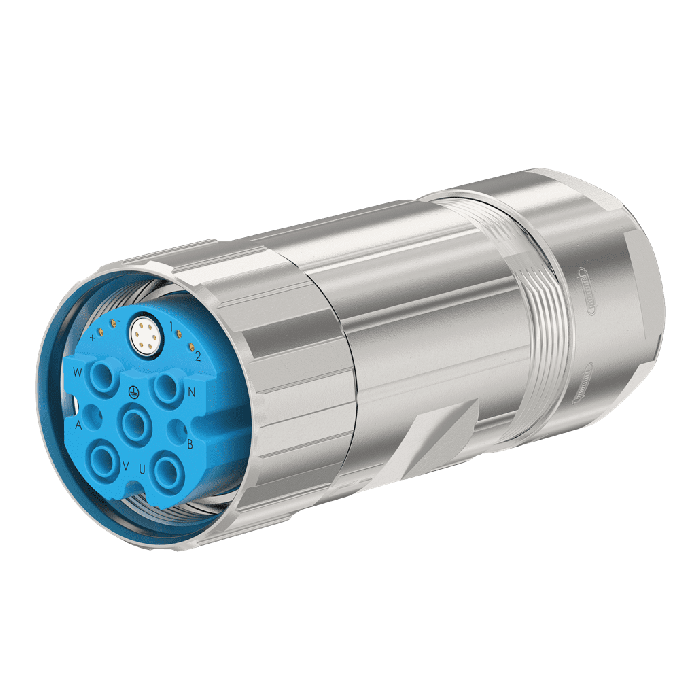

M40 Hybrid cable connector incl. insert
M40 Hybrid cable connector incl. insert from Hummel. Also known as 7710866000. The body material is Die Casting. Protection class IP 67, IP 69 K
In stock
| Attribute | Value |
|---|---|
| Product Brand Name | 7710866000 |
| Manufacturer | Hummel |
| Additional Description |
|
| Colour | blue |
| Length (mm) | 111.2 |
| Customs tariff number | 85366990 |
| ETIM 7 | EC002635 |
| Body size | M40 |
| Characteristic of connection | Crimp |
| Housing type | Cable |
| Material housing | Die Casting |
| Material housing surface | Nickel |
| Number of poles | 17 |
| Coding | - |
| Insert | Socket |
| Signal contact diameter (mm) | 1 |
| Power contact diameter (mm) | 3.6 |
| Minimum mating cycles | > 500 |
| Version | for socket inserts, with knurled nut |
| External thread - plug in side | - |
| Insulating body material | PBT |
| Internal thread - plug in side | M40 x 1.5 |
| Crimp range | 0.05 - 16 mm² |
| Knurled nut diameter - plug in side (mm) | 46 |
| Number of signal contacts | 6 |
| Number of power contacts | 4 |
| Number of PE contacts | 1 |
| Twilock / Twilock-S | - |
| Degree of protection | 3 |
| Suitable data contacts | 7010960612 |
| Locking type | Screw connection |
| Suitable signal contacts | 7015961002;7015961012 |
| Shield | shielded |
| Seal type | O-Ring |
| Suitable power contacts | 7015963602;7015963612;7015963622;7015963632 |
| Pole picture | 6 + 6 + 4 + PE |
| Material seals / O-rings | FKM (FPM);NBR |
| Suitable PE / FE contacts | 7015963602;7015963612;7015963622;7015963632 |
| Contact diameter | 0.6 mm│1 mm│3.6 mm |
| Signal terminal cross section | 0.14 – 1.5 mm² |
| Power terminal cross section | 2.5 – 16 mm² |
| Nominal current signal A | 7 |
| Nominal current power A | 55 |
| Cable diameter (mm) | 21 - 28 |
| Wrench size SW1 / SW2 (mm) | 40/38 |
| Nominal voltage at_degree of pollution 3 signal (V) | 150 |
| Nominal voltage at degree of pollution 3 power (V) | 600 |
| Test voltage signal (V) | 840 |
| Test voltage power (V) | 4000 |
| Insulation resistance data (Ohm) | 10^8 |
| Insulation resistance signal (Ohm) | 10^8 |
| Insulation resistance power (Ohm) | 10^8 |
| Max contact resistance data (mOhm) | 0.003 |
| Max contact resistance signal (mOhm) | 3 |
| Max contact resistance power (mOhm) | 1 |
| Protection class | IP 67, IP 69 K |
| Usage | Hybrid |
| Body size | M40 |
| Housing type | Cable |
| Housing material | Die Casting |
| Housing surface material | Nickel |
| Temperature Range | -40°C to +125°C |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
