7.831.300.000
7.831.300.000
Hummel

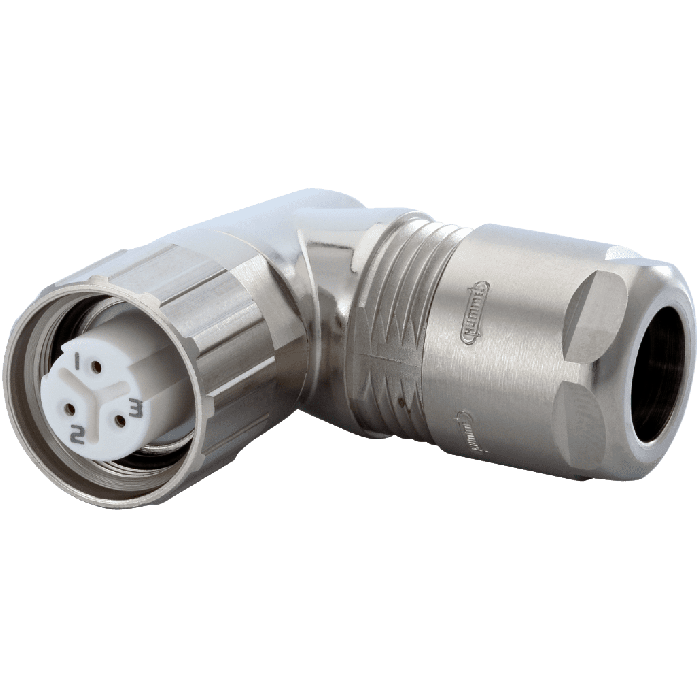

M16 right-angle connector housing
M16 right-angle connector housing from Hummel. Also known as 7831300000. The body material is brass. Die Casting. Protection class IP 67, IP 69 K
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Product Brand Name | 7831300000 |
| Manufacturer | Hummel |
| Additional Description |
|
| Weight (kg) | 0.07504 |
| Further information | Housing without contact inserts. Electrical data depend on the contact insert |
| Customs tariff number | 85366990 |
| EAN code | 4033878504789 |
| ETIM 7 | EC003556 |
| Body size | M16 |
| Housing type | Right angled |
| Material housing | brass. Die Casting |
| Material housing surface | Nickel |
| Internal thread - plug in side | M16 x 0.75 |
| Knurled nut diameter - plug in side (mm) | 19.7 |
| Degree of protection | 3 |
| Locking type | Screw connection. Snap in |
| Shield | shielded |
| Material seals / O-rings | NBR |
| Cable diameter (mm) | 3 - 6 |
| Wrench size SW1 / SW2 (mm) | 18/17 |
| Protection class | IP 67, IP 69 K |
| Usage | Various |
| Body size | M16 |
| Housing type | Right angled |
| Housing material | Brass. Die Casting |
| Housing surface material | Nickel |
| Temperature Range | -40°C to +125°C |
