Hummel

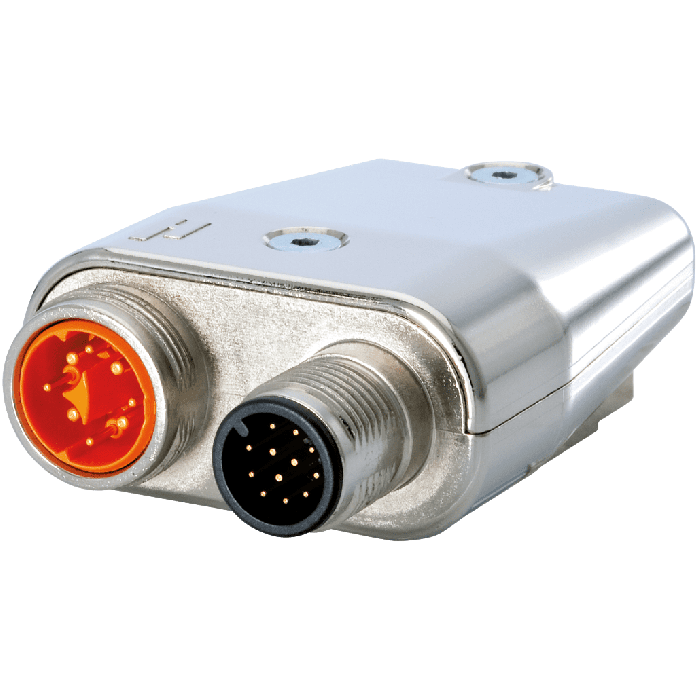

TWINTUS M16/M12 housing
TWINTUS M16/M12 housing from Hummel. Also known as 7848300001. The body material is Die Casting. Protection class IP 67, IP 69 K
In stock
| Attribute | Value |
|---|---|
| Product Brand Name | 7848300001 |
| Manufacturer | Hummel |
| Additional Description |
|
| Length (mm) | 63.2 |
| Weight (kg) | 0.102 |
| Further information | Housing without contact inserts. Electrical data depend on the contact insert |
| Customs tariff number | 85366990 |
| EAN code | 4033878505014 |
| ETIM 7 | EC003556 |
| Body size | M12,M16 |
| Housing type | TWINTUS |
| Material housing | Die Casting |
| Material housing surface | Nickel |
| Version | M16 / M12 |
| External thread - plug in side | M12 x 1;M16 x 0.75 |
| Degree of protection | 3 |
| Locking type | Screw connection. Snap in |
| Shield | unshielded |
| Seal type | Seal |
| Material seals / O-rings | NBR |
| Flange (mm) | 25 x 25 |
| Hole distance (mm) | 19.8 |
| Hole diameter (mm) | 4 x Ø 2,7 |
| Protection class | IP 67, IP 69 K |
| Usage | Various |
| Body size | M12, M16 |
| Housing type | Twintus |
| Housing material | Die Casting |
| Housing surface material | Nickel |
| Temperature Range | -40°C to +125°C |
