Hummel

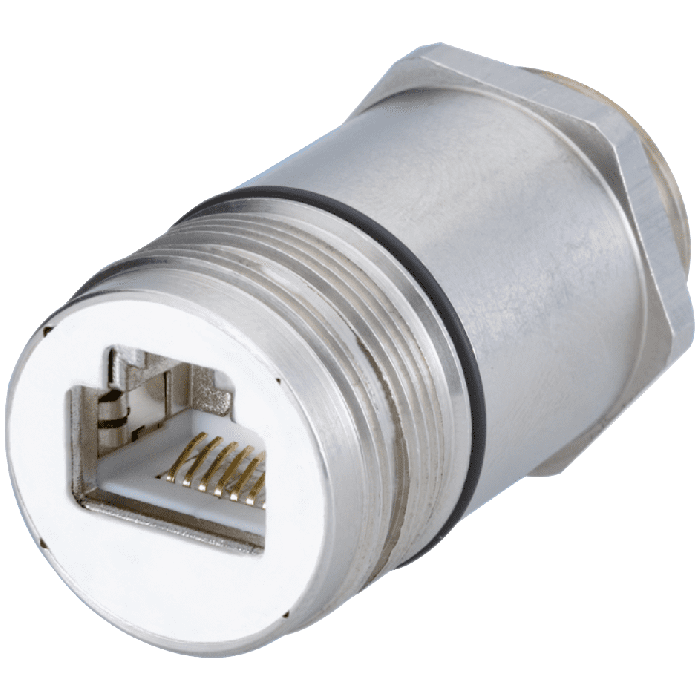

M23 RJ45 panel connector housing
M23 RJ45 panel connector housing from Hummel. Also known as 7R42008000. The body material is brass. Die Casting. Protection class IP 67, IP 69 K
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Product Brand Name | 7R42008000 |
| Manufacturer | Hummel |
| Additional Description |
|
| Colour | white |
| Length (mm) | 42.0000 |
| Weight (kg) | 0.03274 |
| Further information | Housing without contact inserts. Electrical data depend on the RJ45 version used. Including coupling module 8-pole fully assigned. Flat seal optional. Locknut M20 x 1.5 optional |
| Customs tariff number | 85366990 |
| EAN code | 4033878505113 |
| ETIM 7 | EC003556 |
| Body size | M23 |
| Characteristic of connection | RJ45 |
| Housing type | Panel |
| Material housing | brass. Die Casting |
| Material housing surface | Nickel |
| Coding | - |
| Insert | RJ45 |
| Installation type | Front wall. Single hole mounting |
| External thread (AG) | M20 x 1.5 |
| External thread - plug in side | M23 x 1 |
| Insulating body material | PBT |
| Internal thread - plug in side | - |
| Twilock / Twilock-S | - |
| Degree of protection | 3 |
| Locking type | Screw connection |
| Shield | unshielded |
| Seal type | O-Ring |
| Material seals / O-rings | FKM (FPM);NBR |
| Panel hole (mm) | Ø 20,2 + 0,1 |
| Drill form (mm) | D 19,1 + 0,1;D Ø 20,2 + 0,1 |
| Flange (mm) | - |
| Hole diameter (mm) | - |
| Suitable contact inserts | 7MRJ450007, A7RJ-081M41, A7RJ-081M6A, A7RJ-821M51 |
| Protection class | IP 67, IP 69 K |
| Usage | Data |
| Body size | M23 |
| Housing type | Panel |
| Housing material | Brass. Die Casting |
| Housing surface material | Nickel |
