Narda Safety Test Solutions

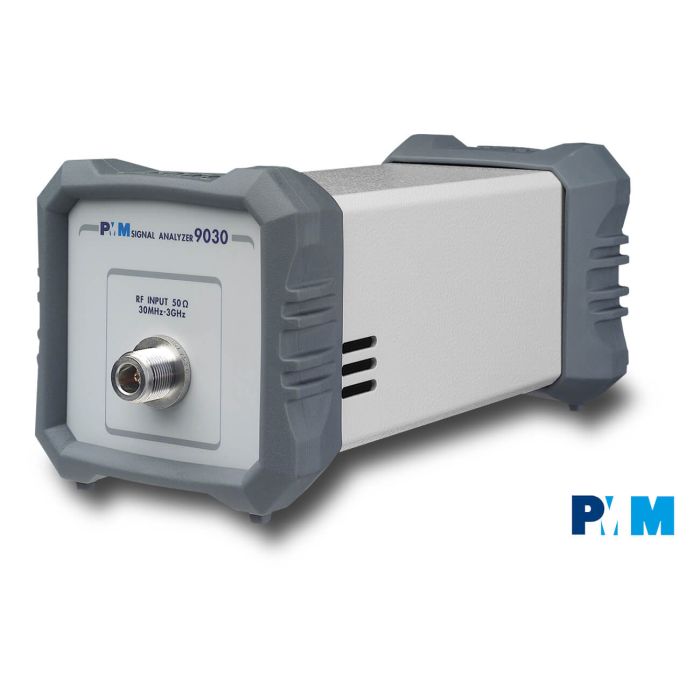

External Unit Full Compliance For 9010F
With the external unit 9060 you can easily extend the frequency range of your receiver up to a maximum of 6 GHz.
Light and compact size, these units are equipped with a rechargeable Li-Ion that allows you to work for hours without any interference.
This external unit is fully compliant with CISPR16-1-1 requirements and meet all commercial and military standards for EMC measurements. All external units are fully compatible with the receivers of the 9010 Series, 9010 and 9010F / xxP
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Dimensions | 235x105x105 mm |
| Weight | 2.3kg |
| Maximum Frequency | 6 GHz |
| Minimum Frequency | 30 MHz |
| Frequency Range |
30 MHz to 3 GHz Resolution - 100 Hz Reference frequency - < 2 ppm |
| RF Input |
Zin 50 Ω,N fem. 10 dB RF att. - < 1.2; < 2 over 1 GHz;< 3 over 3GHz 0 dB RF att. - < 2 ; < 3 over 3 GHz Attenuator - 0 dB to 55 dB (5 dB steps) 0 dB to 55 dB (5 dB steps) > 1 GHz Preamplifier gain - 10 dB |
| Max Input Level |
without equipment damage - 137 dBμV (1 W) |
| Preselector |
Frequency ranges: 30 MHz to 72 MHz 72 MHz to 173 MHz 173 MHz to 416 MHz 416 MHz to 1 GHz 1 GHz to 3 GHz3 GHz to 6 GHz (Four tracking and two BP filters) |
| IF Bandwidth |
3 dB bandwidth - 3, 10, 30, 100, 300 kHz (-6dB) 6 dB bandwidth - 120 kHz (CISPR 16-1-1) |
| Noise Level |
(Preamplifier ON) 30 to 300 MHz: < - 1 dBμV (QP) (120 kHz BW): < - 5 dBμV (AV) 300 to 3000 MHz: < 2 dBμV (QP) (120 kHz BW): < - 2 dBμV (AV) 3000 to 6000 MHz < 10 dBμV (QP) |
| Spurious Response |
< 10 dBμV, < 15 dBμV over 1 GHz, |
| Measurement Accuracy |
S/N > 20 dB 30 to 1000 MHz - ± 1.0 dB 1 to 3 GHz ± 1.5 dB 3 to 6 GHz ± 2.0 dB |
| I/O Interface |
High Speed Optical RS-232 (for maintenance only) |
| Operating Temperature | 0° to 40°C |
| Power Supply |
10 - 15 Vdc, 2.5A Li-Ion rechargeable plug-in battery (4h avg. duration) AC universal adapter/charger |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
