9262

Hioki

Test Fixture

Skip to the end of the images gallery

Skip to the beginning of the images gallery

This product is available in 5-7 weeks

Test Fixture

Key Features

Fixture type: Direct connection
Conductor diameter: 0.3 to 2 mm
Minimum lead spacing: 5 mm
Test frequency range: DC to 8 MHz
Compatible with: IM3590, IM3533, IM3523, and related instruments

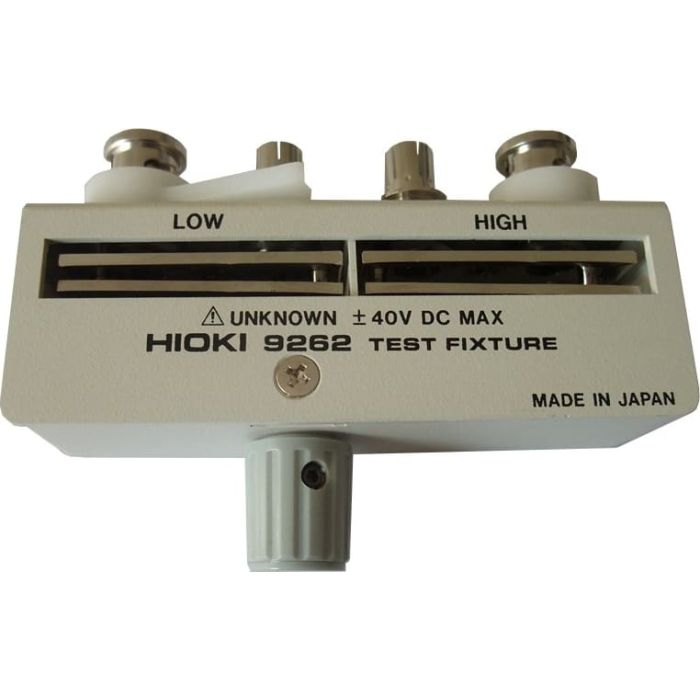

The 9262 is a direct connection fixture designed to measure lead-type components with conductor diameters ranging from 0.3 to 2 mm and a minimum lead spacing of 5 mm. It operates within a frequency range of DC to 8 MHz, making it suitable for various testing applications. The fixture is compatible with the IM3590, IM3533, IM3523, and related instruments, ensuring accurate and reliable measurements of lead-type components.
