9500-10

Our Technologies

9500-10

Hioki

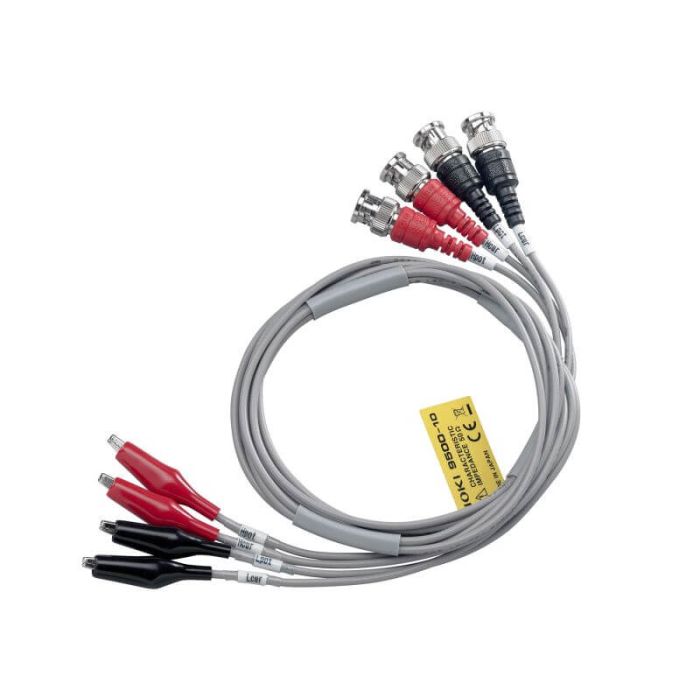

4-Terminal Probe, Cable Length 1M, DC To 200Khz

Skip to the end of the images gallery

Skip to the beginning of the images gallery

This product is available in 5-7 weeks

Pin Type Lead

Key Features

Measurement frequency range: DC to 200 kHz
Maximum rated voltage: ±40 V DC
Maximum current: 1 A peak (measurement signal + bias current) • Cable length: approx. 1000 mm
Suitable for conductors with a diameter of 0.3 mm to 2 mm
Equipped with a 50-Ω coaxial cable
Operating temperature: 0°C to 40°C
2D drawing free downloadable

The 9500-10 4-terminal probe (alligator clip type) connects directly to the measurement terminals of the HIOKI IM series (LCR meters, impedance analysers).
