L9788-10
L9788-10
Hioki
Test Lead With Remote Switch (Red), Lighting Led Lamp & Comparator
This product is available in 5-7 weeks
Test Lead with Release ButtonKey Features
- Cable Length: 1.2 m
- Color: Red
- Tip Diameter: Front part 1.8 mm, shaft basis 3.2 mm
- Tip length: 35 mm (smaller tip part: 13 mm)
- Voltage safety categories: With tip cover: Cat III 600V, w/o cover Cat II 600V
- Imax: 2 A
- Compatible Hioki Products: FT4310, IR4016-20, IR4058, IR4056, IR4053, IR4057-50, IR4057-90, IR4059

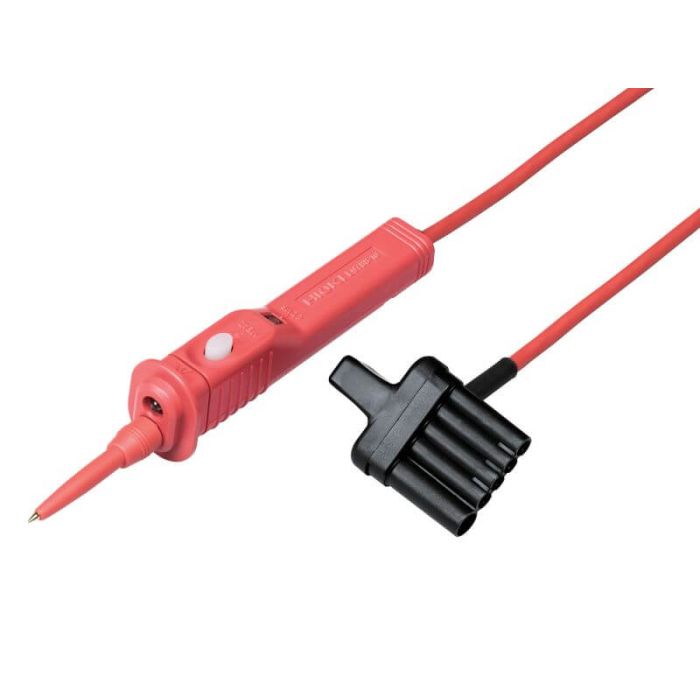

The L9788-10 combines a Test Lead with a Remote Switch. It has a lighting LED lamp and comparator indicator which is active for main units with comparator function. The tip cover is detachable to measure on breakers or similar devices.
In stock
Attribute | Value |
---|---|
Data Sheet | Click here to view |
