Hioki

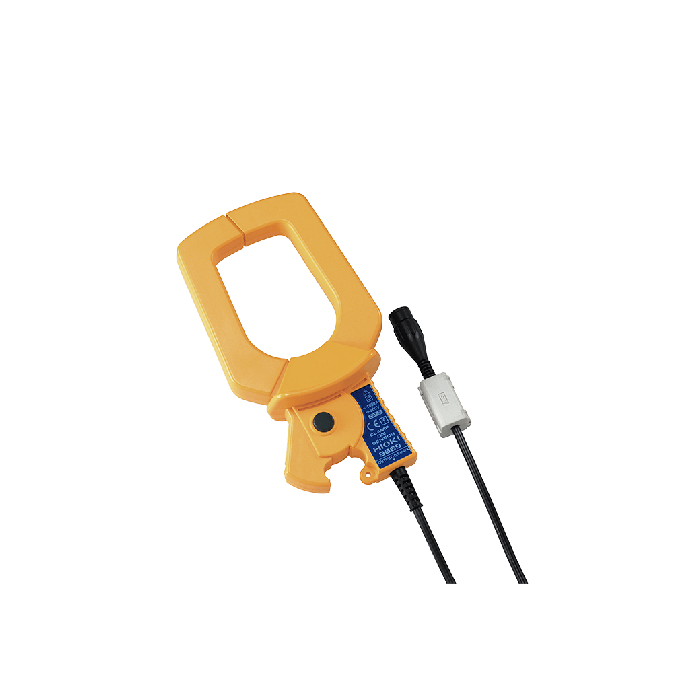

Clamp On Sensor 9669 - For measuring load current, voltage output sensor 1000 A AC

main product photo
Hioki current sensors are best-in-class devices for use with power meters and PQAs. The 9669 is a 1000A AC clamp sensor with voltage output for measuring load current. CAT III 600V
Contact us for lead time

Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.

Request a quote
More Information
Attribute Value
Key Features
  • For inverter devices or commercial power lines
  • Measure up to 1000 A
Basic Specifications
Rated measurement current 1000 A AC
Max. measurement current Continuous 1000 A (45 to 66 Hz)
Output rate 0.5 mV AC/ A
Amplitude accuracy
(45 to 66 Hz)		 ±1.0% rdg. ±0.01% f.s.
Phase accuracy ±1° (45 Hz to 5 kHz)
Amplitude frequency characteristics Within ±2% at 40 Hz - 5 kHz (deviation from accuracy)
Max. rated voltage to earth 600 V AC rms or less
Measurable conductor diameter φ 55 mm (2.17 in) or less
80 × 20 mm, Buss bars
Operating temperature and humidity 0°C to 50°C (32°F to 122°F), 80% RH or less (no condensation)
Dustproofness and waterproofness N/A
Dimensions and mass 99.5 mm (3.92 in)W × 188 mm (7.40 in)H × 42 mm (1.65 in)D, 590 g (20.8 oz)
Cord length 3 m (9.84 ft), Output terminal: BNC
Instrument Type Clamp Meter
Notes Supports power quality analyzers, power meters and other data acquisition equipment with voltage input
More Information
Attribute Value
Data Sheet Click here to view
